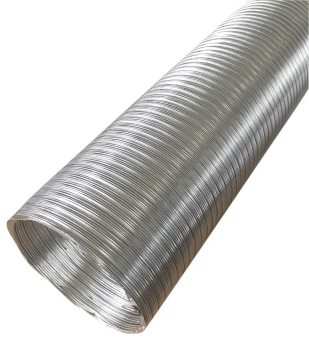

A220 A-Seam™ Semi-Rigid Flexible Aluminum Pipe Plain Ends
The A220 A-Seam™ Semi-Rigid Flexible Aluminum Pipe is a Class 0 duct used as supply, return or exhaust. The patented design allows extreme compression without making it harder to pull it back out for installation. It solves the need for an easily bent, compressed duct which takes less space in the warehouse.
PRODUCT FEATURES
- Plain ends
- Ships compressed to 23”
PRODUCT SPECIFICATIONS
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- 30˚ strength angles between ribs
- Mechanically locked together
- Design allows for tightest compression available in a 100% aluminum duct WITHOUT making it harder to pull the duct out for installation.
- Class 0
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each # | Qty | Case # | Package | UPC |
|---|---|---|---|---|---|---|---|
| A220 A-Seam | 3" | 10' | 12903 | 20 | 112903 | Bulk | 722048129030 |
| A220 A-Seam | 3" | 10' | 12903 | 400 | 712903 | Skid | 722048129030 |
| A220 A-Seam | 4" | 10' | 12911 | 12 | 112911 | Bulk | 722048129115 |
| A220 A-Seam | 4" | 10' | 12911 | 240 | 712911 | Skid | 722048129115 |
