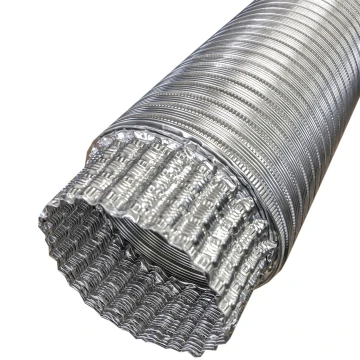

V330 Flexible Pipe PRO Crimped One End
The V330 PRO Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust.
PRODUCT FEATURES
- One end crimped and one plain end
- 8 ft length ships compressed to 24 in
PRODUCT SPECIFICATIONS
- Thicker wall than V320
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Class 0 metal duct, non-insulated
- Non-combustible corrugated aluminum with continuous lockseams
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each# | Qty | Case # | Package | UPC | Label |
|---|---|---|---|---|---|---|---|---|
| V330 | 3" | 8' | 10308 | 20 | 011489 | Bulk | 722048103085 | |
| V330 | 3" | 8' | 11637 | 10 | 11637 | Display Tag | 722048116375 | • |
| V330 | 4" | 8' | 10312 | 12 | 011491 | Bulk | 722048103122 | |
| V330 | 4" | 8' | 10312 | 240 | 710312 | Skid | 722048103122 | |
| V330 | 4" | 8' | 11638 | 12 | 111638 | Display Tag | 722048116382 | • |
| V330 | 5" | 8' | 10316 | 6 | 011493 | Bulk | 722048114937 | |
| V330 | 6" | 8' | 10317 | 4 | 110317 | Bulk | 722048103177 | |
| V330 | 6" | 8' | 11640 | 4 | 111640 | Display Tag | 722048116405 | • |
| V330 | 7" | 8' | 10319 | 4 | 110319 | Bulk | 722048103191 | |
| V330 | 8" | 8' | 10320 | 4 | 110320 | Bulk | 722048103207 | |
| V330 | 8" | 8' | 11699 | 4 | 111699 | Display Tag | 722048116993 | • |
| V330 | 9" | 8' | 10322 | 4 | 110322 | Bulk | 722048103221 | |
| V330 | 10" | 8' | 10323 | 4 | 110323 | Bulk | 722048103238 | |
| V330 | 10" | 8' | 11072 | 4 | 111072 | Display Tag | 722048117020 | • |
| V330 | 12" | 8' | 10246 | 4 | 110246 | Bulk | 722048102460 | |
| V330 | 14" | 8' | 11393 | 2 | 111393 | Bulk | 722048113930 | |
