A100 A-Seam™ Thermofin® Stretch Fit™

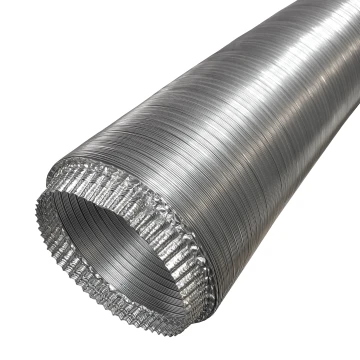

The A100 A-Seam™ Stretch Fit™ Air Duct is a semi-rigid flexible aluminum pipe Class 0 air duct used as supply, return or exhaust. The patent-pending design allows extreme compression without making it harder to pull it back out for installation. Design allows for tightest compression available in a 100% aluminum duct WITHOUT making it harder to pull the duct out for installation.
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative: 3" thru 10" diameters = 12" w.g. 12" diameter = 8" w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Duct Dia. (in) | Approx. Bend (in) |
| 3" | 1.5" |
| 4" | 2" |
| 5" | 2.5" |
| 6" | 3" |
| 7" | 3.5" |
| 8" | 4" |
| 9" | 4.5" |
| 10" | 5" |
| 12" | 6" |
| Model | Package | UPC | Label | Diameter | Length | Listing | Each# | Qty | Case# |
|---|---|---|---|---|---|---|---|---|---|
| A100 A-Seam | Bulk | 722048128200 | 3" | 8' | UL®181 | 12820 | 20 | 112820 | |
| A100 A-Seam | Skid | 722048128200 | 3" | 8' | UL®181 | 12820 | 400 | 712820 | |
| A100 A-Seam | Bulk | 722048128217 | 4" | 8' | UL®181 | 12821 | 12 | 112821 | |
| A100 A-Seam | Skid | 722048128217 | 4" | 8' | UL®181 | 12821 | 240 | 712821 | |
| A100 A-Seam | Bulk | 722048128224 | 5" | 8' | UL®181 | 12822 | 7 | 112822 | |
| A100 A-Seam | Bulk | 722048128231 | 6" | 8' | UL®181 | 12823 | 4 | 112823 | |
| A100 A-Seam | Skid | 722048128231 | 6" | 8' | UL®181 | 12823 | 96 | 712823 | |
| A100 A-Seam | Bulk | 722048128248 | 7" | 8' | UL®181 | 12824 | 3 | 112824 | |
| A100 A-Seam | Bulk | 722048128255 | 8" | 8' | UL®181 | 12825 | 4 | 112825 | |
| A100 A-Seam | Bulk | 722048128279 | 10" | 8' | UL®181 | 12827 | 2 | 112827 | |
| A100 A-Seam | Ind. Box | 722048128286 | • | 12" | 8' | UL®181 | 12828 | 1 | 012828 |
