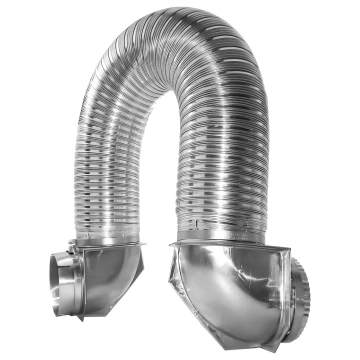

Close Loop™ UL® Dryer Vent Kit

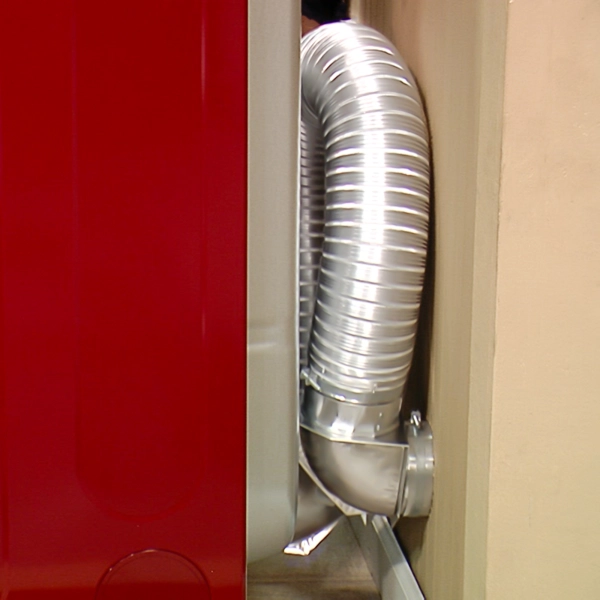

The 6' universal dryer vent kit features one 6 foot section of pipe attached to two Close Elbows® and two clamps for wall and dryer connections. The kit installs in 4.5" when the wall pipe is trimmed flush. Clamps are provided for wall and dryer connections. Swiveling collars on the elbows allow for the dryer to be pulled away from the wall for cleaning without disconnecting the system.
Elbows are fastened to the duct with clamps so that they can be easily disassembled to meet a variety of installation challenges.
SAF-T-DUCT® is designed specifically for clothes dryers. Snap-Lock™ fittings, pre-treated ends, heavy duty aluminum and close clearance are features included the SAF-T-DUCT® product line.
KIT CONTAINS
- One - 6 foot duct sections attached to two Close Elbows®
- Two - steel screw clamps for wall and dryer connections
RECOMMENDATIONS
- Meets UL2158A, the clothes dryer venting certification.
- Clothes dryer manufacturers and building codes recommend all metal venting.
PERFORMANCE DATA
- Pressure rating: Maximum positive and negative UL 12" w.g.
- Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
Model | Clamps | Listing | Each # | Qty | Case# | Package | UPC | Label | Diameter | Length | Elbows |
---|---|---|---|---|---|---|---|---|---|---|---|
Close Loop™ Kit UL® | 2 steel screws | UL® 2158A | 11693 | 4 | 11693 | Ind. Box | 72204816931 | • | 4" | 6' | 2 Close Elbows® |
Close Loop™ Kit UL® | 2 steel screws | UL® 2158A | 11926 | 4 | 111926 | Display Box | 722048119260 | • | 4" | 6' | 2 Close Elbows® |
