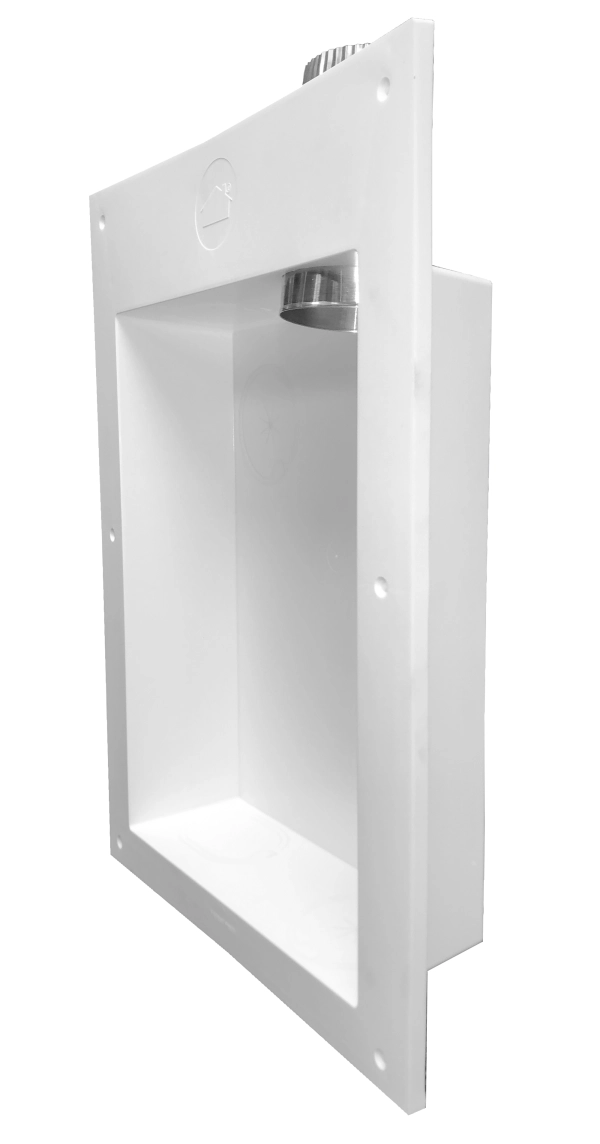

Dryer Outlet Box

One Self trimming unit: 18" wide by 24" high
Fits all 16" centers 2x4's and 2x6's
Six patented rip-tab knockouts in most common positions
- Four true 4" diameter knockouts (two rear, two right upper and lower)
- Two 3" x 4.5" oval knockouts (left upper and lower)
  Oval knockouts are provided for non-standard connections to existing venting (i.e. squashed duct),or for a round to oval adapter.
4 starburst knockouts for gas connections and venting
6 pre-drilled mounting holes
Plastic meets UL® standard 94 HB tests for flammability
Six screws included

RECOMMENDATIONS

Description	Accessories	Each #	Qty	Case #	Package
Single Box	n/a	10697	10	110697	Bulk
Single Box	n/a	10698	3	110698	Ind. Box
Single Box	n/a	10696	3	110696	Display Box
Single Box	one round to oval adapter	11564	3	111563	Display Box

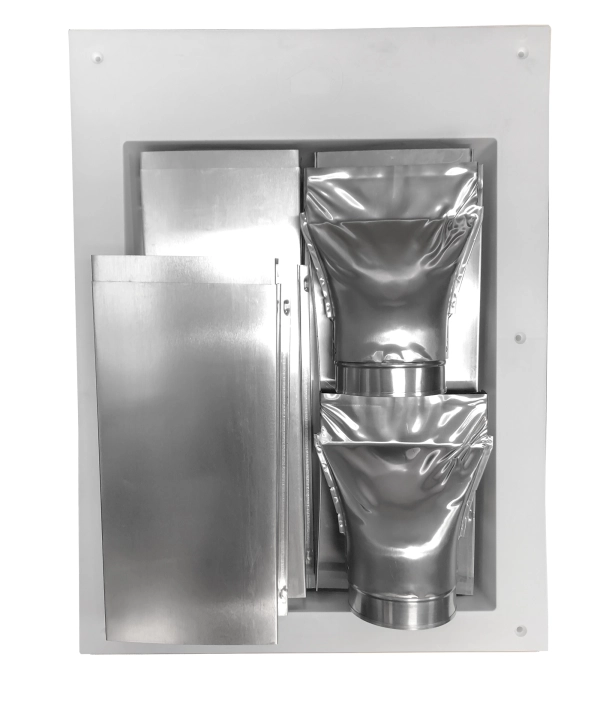

Kit for 8' Wall	box, periscope, 2 transitions	11000	5	111000	Ind. Box
Kit for 10' Wall	box, periscope, 2 transitions	11001	5	11101	Ind. Box
Adapter	aluminum rectangle to round	10518	12	110518	Bulk
Adapter	aluminum round to oval	11396	16	111396	Bulk
