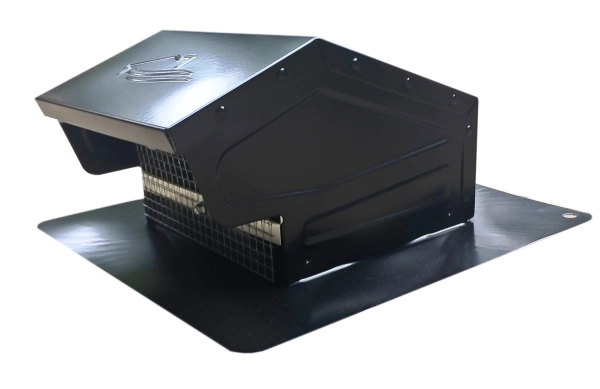

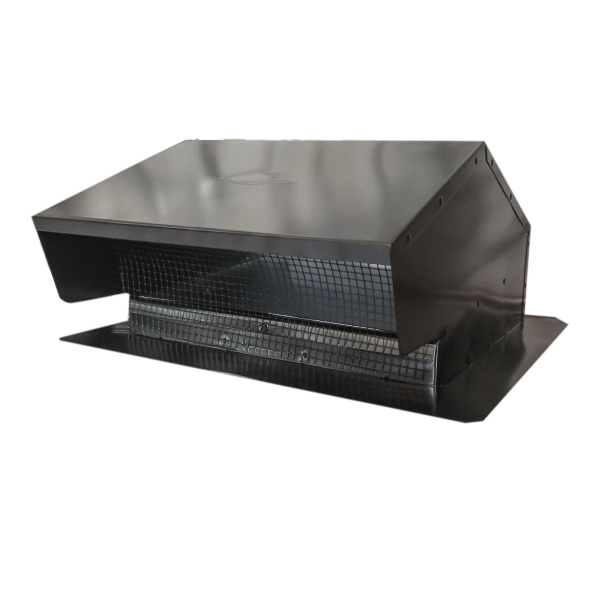

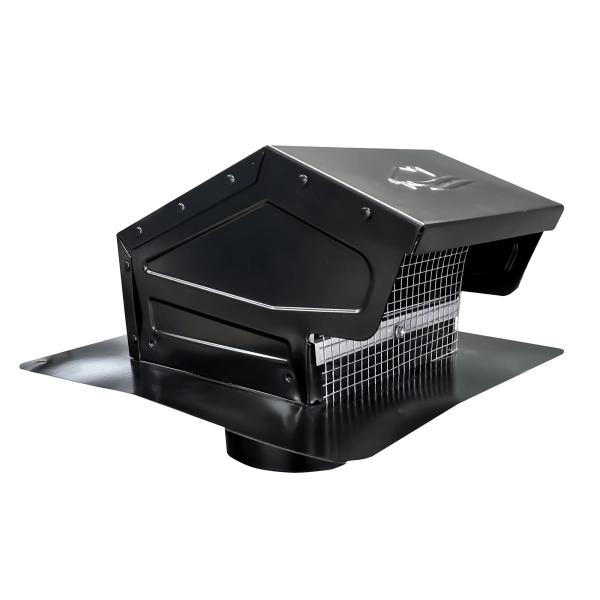

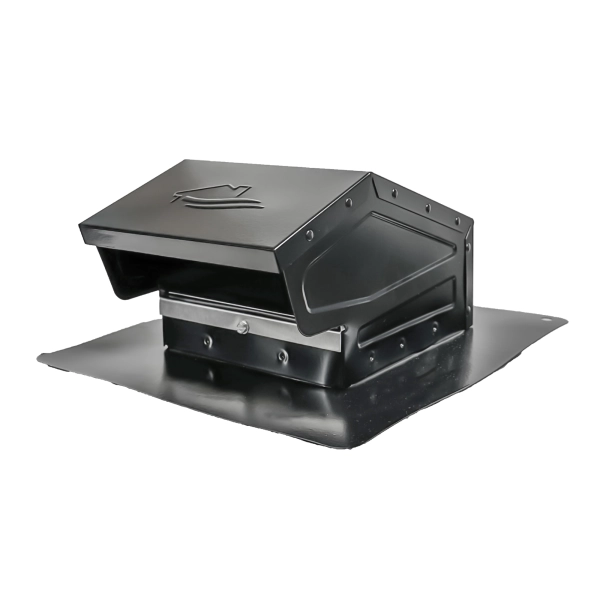

Galvanized Roof Vent – Black GRV820 and GRV824
The GRV is a heavy duty Galvanized Roof Vent hood with a black powder coat finish.
PRODUCT FEATURES
- Riveted construction, no caulk
- Draw-formed base
PRODUCT SPECIFICATIONS
- 26 gauge galvanized steel with high performance polyester powder coated finish
- Flapper
RECOMMENDATION
- Recommended for 4/12 roof pitch and steeper.
- Not recommended for flat roofs.
| Model: | Flapper | Screen | Each # | Qty | Case # | Package | UPC | Label | Diameter | Tail |
|---|---|---|---|---|---|---|---|---|---|---|
| GRV820 | flapper | n/a | 12642 | 1 | 012642 | Ind. Box | 722048126428 | • | 4" | flush |
| GRV820 | flapper | n/a | 12643 | 1 | 012643 | Ind. Box | 720481264356 | • | 4" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12635 | 1 | 012635 | Ind. Box | 722048126350 | • | 4" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12635 | 120 | 712635 | Skid | 722048126350 | • | 4" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12645 | 1 | 012645 | Disp. Box | 722048126459 | • | 4" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12636 | 1 | 012636 | Ind. Box | 722048126367 | • | 4" | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12636 | 160 | 712636 | Skid | 722048126367 | • | 4" | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12646 | 1 | 012646 | Disp. Box | 722048126466 | • | 4" | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12632 | 1 | 012632 | Ind. Box | 722048126329 | • | 6" | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12633 | 1 | 012633 | Ind. Box | 722048126336 | • | 6" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12633 | 60 | 712633 | Skid | 722048126336 | • | 6" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12639 | 1 | 012639 | Ind. Box | 722048126398 | • | 7" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12639 | 60 | 712639 | Skid | 722048126398 | • | 7" | with collar |
| GRV824 | flapper | 1/4" x 1/4" removable | 12634 | 1 | 012634 | Ind. Box | 722048126343 | • | 6-8" (3¼" x 10") | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12634 | 54 | 712634 | Skid | 722048126343 | • | 6-8" (3¼" x 10") | flush |
| GRV824 | flapper | 1/4" x 1/4" removable | 12638 | 1 | 012638 | Ind. Box | 722048126381 | • | 10" | flush |
| Kit 012640 includes: GRV824 Roof Cap, 4" x 8' UL 181 Foil Duct, one 3-4" plastic increaser reducer, two ZipTorq clamps | flapper | 1/4" x 1/4" removable | 12640 | 1 | 012640 | Disp. Box | • | 4" | with collar | |
