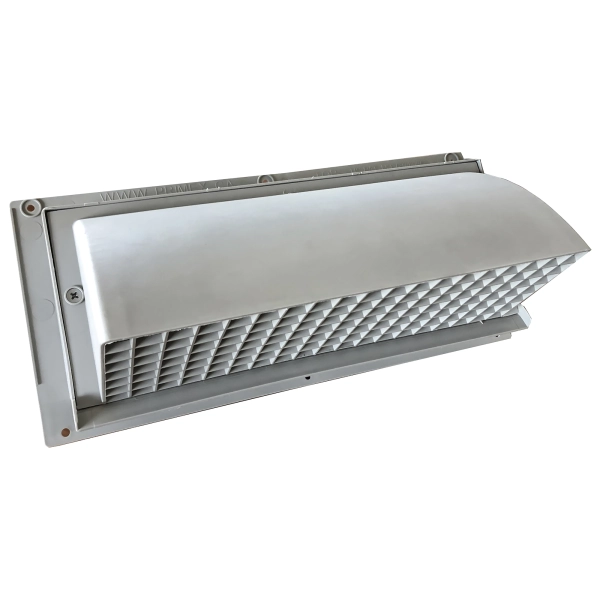

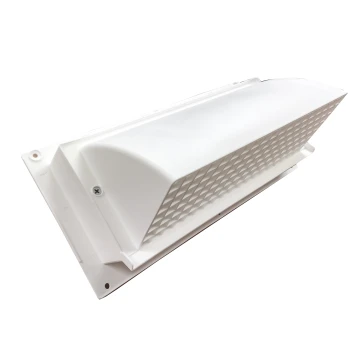

Hood Wall WC310 3 1/4-in × 10-in Heavy Duty Plastic Wall Cap
- UV stablized Polymer resin
- Drip edge on flanged base to help drain away water
- Removable Damper for intake or exhaust
- 1/2" x 1/2" molded grid
- 3 1/4" x 10" long rectangular tail
- Special order item (not stocked)
FEATURES & BENEFITS
- Compatible with rainscreen applications via extended base, compensating for cavity between sheathing and cladding.
- Patented design eliminates leaky joints while maximizing water protection with one-piece molded base and built-in drip edge.
- Integrity of the building envelope is maintained via a removable hood for simple duct cleaning.
- Suitable for intake and exhaust applications.
- Over-sized flange ensures watertight installation.
- Made with UV-protected durable polymer resin.
- Highly resistant to mechanical impact including a built-in bird screen.
- Quick and easy installation.
COLOURS
- Black (25)
- Tan (45)
- Light Grey (31)
- Dark Brown (68)
- Dark Grey (28)Snow White (01)
- Taupe (23)
APPLICATIONS
- Range Venting
PART NUMBER/SIZING
| Part # | Duct Boot | Free Area | Description | Pkg |
| WC310 | 3" x 10" | 30.2 sq. in. | Wall Cap Vent: use with 3" x 10" register boot or slab duct | 18/box |
| WC310K | 3.25" x 10" | 30.2 sq. in. | Range Hood Vent: use with 3.25" x 10" kitched transition boot or slab duct | 18/box |
| Dia. | Color | Mouth | Screen | Each # | Qty | Case # | Package | UPC | Labeled |
|---|---|---|---|---|---|---|---|---|---|
| 4" | grey | wide | 1/2" x1/2" | WC31031KEA | 18 | WC31031K | Bulk | 063316310317 | • |
| 4" | white | wide | 1/2" x1/2" | WC31001KEA | 18 | WC31001K | Bulk | ||
| 4" | taupe | wide | 1/2" x1/2" | WC31023KEA | 18 | WC31023K | Bulk | ||
| 4" | dark brown | wide | 1/2" x1/2" | WC31068KEA | 18 | WC31068K | Bulk |
