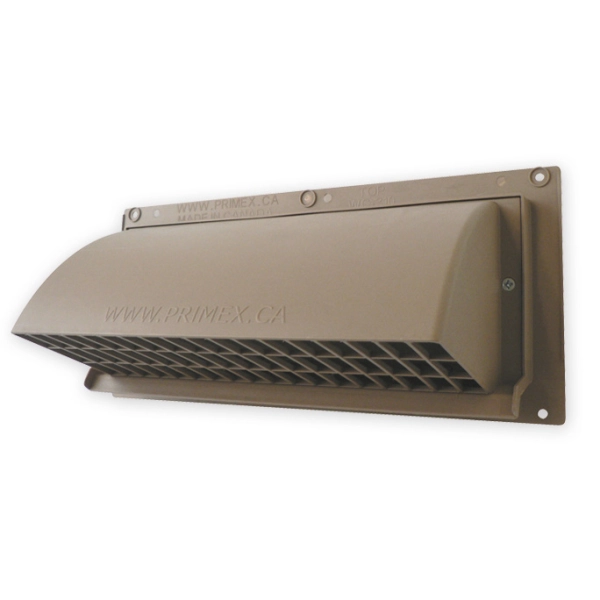

Primex Hood Wall WC310 Series – Heavy Duty Plastic Wall Cap
The Primex Wall Cap Series (WC) is ideal for exhaust and intake applications. This includes the through-wall exhaust of dryers*, bathroom kitchen fans and stove vents, and the intake for furnaces and fresh air make-up. This rainscreen-compatible series comes in sizes ranging from 3-8 inches and in multiple colours.
- UV stablized Polymer resin
- Drip edge on flanged base to help drain away water
- Removable Damper for intake or exhaust
- 1/2" x 1/2" molded gri
- Special order item (not stocked)
- WC310
- WC310K
FEATURES & BENEFITS
- Compatible with rainscreen applications via extended base, compensating for cavity between sheathing and cladding.
- Patented design eliminates leaky joints while maximizing water protection with one-piece molded base and built-in drip edge.
- Integrity of the building envelope is maintained via a removable hood for simple duct cleaning.
- Suitable for intake and exhaust applications.
- Over-sized flange ensures watertight installation.
- Made with UV-protected durable polymer resin.
- Highly resistant to mechanical impact including a built-in bird screen.
- Quick and easy installation.
COLOURS
- Black (25)
- Tan (45)
- Light Grey (31)
- Dark Brown (68)
- Dark Grey (28)
- Snow White (01)
- Taupe (23)
APPLICATIONS
- Range Venting
PART NUMBER/SIZING
| Part # | Duct Boot | Free Area | Description | Pkg |
| WC310 | 3" x 10" | 30.2 sq. in. | Wall Cap Vent: use with 3" x 10" register boot or slab duct | 18/box |
| WC310K | 3.25" x 10" | 30.2 sq. in. | Range Hood Vent: use with 3.25" x 10" kitched transition boot or slab duct | 18/box |
| Size | UPC | Labeled | Color | Mouth | Screen | Each # | Qty | Case # | Package |
|---|---|---|---|---|---|---|---|---|---|
| 3.25"x10" | White | wide | 1/2" x1/2" | WC31001KEA | 18 | WC31001K | Bulk | ||
| 3.25"x10" | Taupe | wide | 1/2" x1/2" | WC31023KEA | 18 | WC31023K | Bulk | ||
| 3.25"x10" | Dark Brown | wide | 1/2" x1/2" | WC31068KEA | 18 | WC31068K | Bulk | ||
| 3.25"x10" | Black | wide | 1/2" x1/2" | WC31025KEA | 18 | WC31025K | Bulk | ||
| 3.25"x10" | Dark Grey | wide | 1/2" x1/2" | WC31028KEA | 18 | WC31028K | Bulk | ||
| 3.25"x10" | Tan | wide | 1/2" x1/2" | WC31045KEA | 18 | WC31045K | Bulk | ||
| 3"x10" | White | wide | 1/2" x1/2" | WC31001EA | 18 | WC31001 | Bulk | ||
| 3"x10" | Taupe | wide | 1/2" x1/2" | WC31023EA | 18 | WC31023 | Bulk | ||
| 3"x10" | Black | wide | 1/2" x1/2" | WC31025EA | 18 | WC31025 | Bulk | ||
| 3"x10" | Light Grey | wide | 1/2" x1/2" | WC31031EA | 18 | WC31031 | Bulk | ||
| 3"x10" | Tan | wide | 1/2" x1/2" | WC31045EA | 18 | WC31045 | Bulk | ||
| 3"x10" | Dark Brown | wide | 1/2" x1/2" | WC31068EA | 18 | WC31068 | Bulk | ||
| 3"x10" | Dark Grey | wide | 1/2" x1/2" | WC31028EA | 18 | WC31028 | Bulk |
