OTT Over-The-Top® Dryer Vent Kit

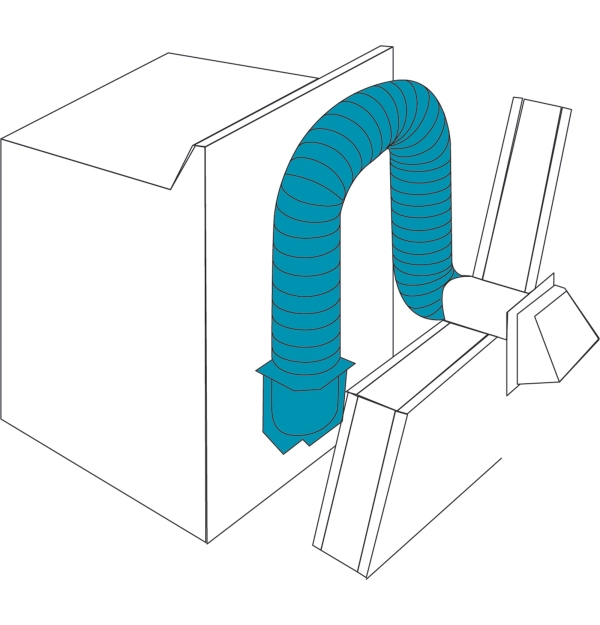

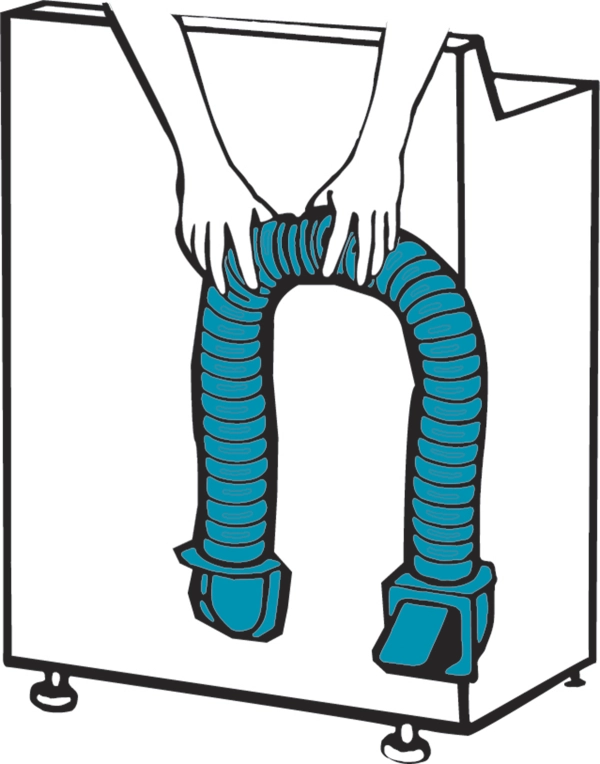

The 8' universal dryer vent kit features two 4 foot sections of pipe attached to two Close Elbows® and two clamps for wall and dryer connections. The kit installs in 4.5" when the wall pipe is trimmed flush and the wall plate is used. Clamps are provided for wall and dryer connections and are not required for the final Over-TheTop® snap-lock™ connect of the duct. Swiveling collars on the elbows allow for the dryer to be pulled away from the wall for cleaning without disconnecting the system.
SAF-T-DUCT® is designed specifically for clothes dryers. Snap-Lock™ fittings, pre-treated ends, heavy duty aluminum and close clearance are features included the SAF-T-DUCT® product line.
KIT CONTAINS

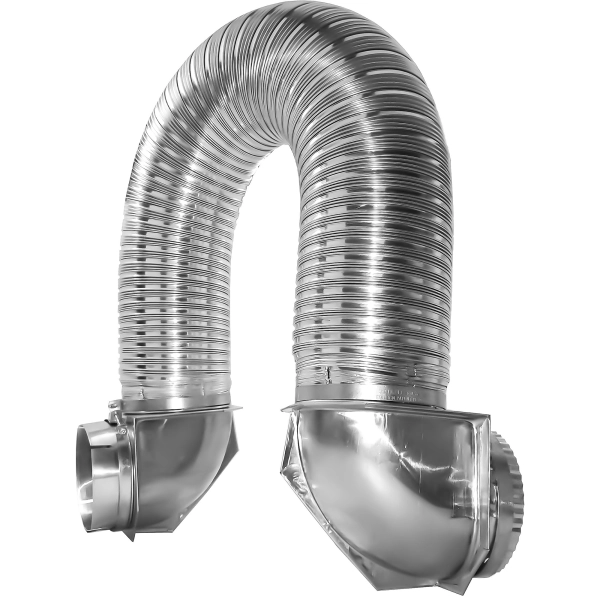

- Two - 4 foot duct sections attached to two Close Elbows®
- Two - steel screw clamps for wall and dryer connections
- One - wall plate for flush clearance
RECOMMENDATIONS
- PN 11920 meets UL2158A, the clothes dryer venting certification.
- Clothes dryer manufacturers and building codes recommend all metal venting
PERFORMANCE DATA
- Pressure rating: Maximum positive and negative UL 12" w.g., non-UL 6" w.g.
- Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
Model | Diameter | Length | Elbows | Clamps | Listing | Each# | Qty | Case# | Package | UPC | Label |
---|---|---|---|---|---|---|---|---|---|---|---|
OTT Kit | 4" | 8' | 2 Close Elbows® | 2 steel screws | 10171 | 4 | 110171 | Display Box | 722048101715 | • | |
OTT Kit | 4" | 8' | 2 Close Elbows® | 2 steel screws | 10127 | 6 | 110127 | Bulk | 722048101272 | ||
OTT Kit | 4" | 8' | 2 Close Elbows® | 2 steel screws | UL® Listed 2158A | 11920 | 4 | 111920 | Ind. Box | 722048119208 | • |
