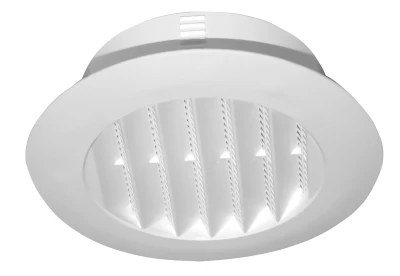

Primex RDV Series Round Eave (Soffit) Vent
Round soffit vent for Intake or exhaust made of UV-stabilized polymer resin.
- Molded in screen
- UV Stabilized Polymer resin
- Secure friction fit
FEATURES & BENEFITS
- Helps prevent peeling paint by removing moisture from wall cavities.
- Extra long collar for better hose or duct connection.
- Molded-in mesh bug screen.
- Secure friction fit.
- Made from durable, one-piece molded plastic.
- Quick and easy installation.
- Pair with optional Primex 4-inch Squeeze Elbow (EB4x90) for 2x4 stud installation.
COLOURS
- Snow White (01)
APPLICATIONS
- Heat Recovery Venting (HRV)
- Bathroom Venting
- Intake
- Range Venting
PART NUMBER/SIZING
| Part # | Size | Free Area | Description | Pkg |
| RDV2S | 2" Dia. | 1.1 sq. in | Fits 2" diameter duct | 50/bag |
| RDV4S | 4" Dia. | 4.0 sq. in | Fits 4" diameter duct | 70/bag |
| RDV5S | 5" Dia. | 6.4 sq. in | Fits 5" diameter duct | 50/bag |
| RDV6S | 6" Dia. | 10.3 sq. in | Fits 6" diameter duct | 30/bag |
| Model | Qty | Package | UPC | Label | Diameter | Tail | Color | Screen | Free Area | Old Part # | Each# /Case# |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RDV | 70 | Bulk | 063316400018 | • | 4" | 1.7 | White | bug screen | 4.0 sq.in | 111869 | RDV4S01 |
| RDV | 30 | Bulk | 063316600012 | • | 6" | 1.4 | White | bug screen | 10.3 sq.in | 111871 | RDV6S01 |
