Primex SM Side Wall Caps Surface Mount Wall Vents

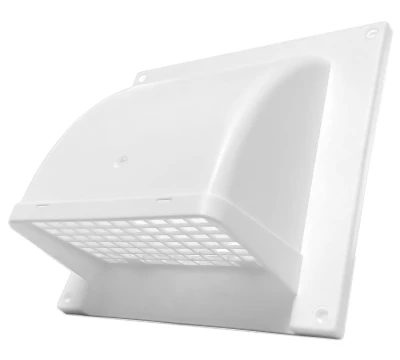

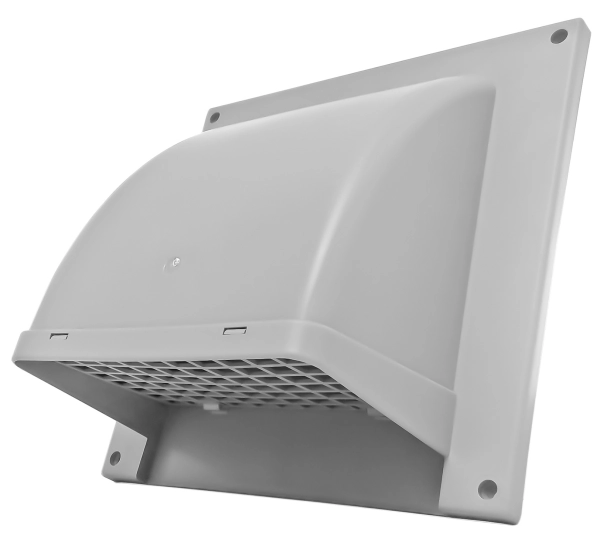

The Primex Surface Mount Wall Vent (SM Series) is the perfect replacement for existing bathroom or range hood exhaust terminations. The SM Series is easy to install and aesthetically pleasing. The seamless, low-profile, one-piece design accommodates standard 4-6 inch ducting. UV-stabilized polymer resin offers long-lasting protection while reducing leaks.
- UV-stabilized durable polymer resin
- One-piece, seamless design helps eliminate leaky joints while maximizing water protection
- Spring loaded damper reduces noise caused by wind
- Removable screen
- Surface mount
FEATURES & BENEFITS
- Compatible with rainscreen applications via extended base, compensating for cavity between sheathing and cladding.
- Patented design eliminates leaky joints while maximizing water protection with one-piece molded base and built-in drip edge.
- Integrity of the building envelope is maintained via a removable hood for simple duct cleaning.
- Suitable for intake and exhaust applications.
- Over-sized flange ensures watertight installation.
- Made with UV-protected durable polymer resin.
- Highly resistant to mechanical impact including a built-in bird screen.
- Quick and easy installation.
COLOURS
- Black (25)
- Tan (45)
- Light Grey (31)
- Dark Brown (68)
- Dark Grey (28)
- Snow White (01)
- Taupe (23)
FREE AREA
SM4, fits 4" ducting
- 9.7 sq. in.*
SM5, fits 5" ducting
- 19.3 sq. in.*
SM6, fits 6" ducting
- 19.3 sq. in.*
*Free area does not account for spring loading
APPLICATIONS
- Range Venting
| Model | Size | Description | Each# | Qty | Case# | Package |
|---|---|---|---|---|---|---|
| SM4 | 4" | Taupe Side Wall Cap, Spring Flapper Screen | SM423 | 24 | 1SM423 | Bulk |
| SM4 | 4" | Black Side Wall Cap, Spring Flapper Screen | SM425 | 24 | 1SM425 | Bulk |
| SM4 | 4" | Dark Grey Side Wall Cap, Spring Flapper Scrn | SM428 | 24 | 1SM428 | Bulk |
| SM4 | 4" | Tan Side Wall Cap, Spring Flapper Screen | SM445 | 24 | 1SM445 | Bulk |
| SM4 | 4" | Dark Brown Side Wall Cap, Spring Flapper Scrn | SM468 | 24 | 1SM468 | Bulk |
| SM5 | 5" | White Side Wall Cap, Spring Flapper Screen | SM501 | 10 | 1M501 | Bulk |
| SM5 | 5" | Taupe Side Wall Cap, Spring Flapper Screen | SM523 | 10 | 1SM523 | Bulk |
| SM5 | 5" | Black Side Wall Cap, Spring Flapper Screen | SM525 | 10 | 1SM525 | Bulk |
| SM5 | 5" | Dark Grey Side Wall Cap, Spring Flapper Scrn | SM528 | 10 | 1SM528 | Bulk |
| SM5 | 5" | Dark Brown Side Wall Cap, Spring Flapper Scrn | SM568 | 10 | 1SM568 | Bulk |
| SM6 | 6" | Taupe Side Wall Cap, Spring Flapper Screen | SM623 | 10 | 1SM623 | Bulk |
| SM6 | 6" | Black Side Wall Cap, Spring Flapper Screen | SM625 | 10 | 1SM625 | Bulk |
| SM6 | 6" | Dark Grey Side Wall Cap, Spring Flapper Scrn | SM628 | 10 | 1SM628 | Bulk |
| SM6 | 6" | Tan Side Wall Cap, Spring Flapper Screen | SM645 | 10 | 1SM645 | Bulk |
| SM6 | 6" | Dark Brown Side Wall Cap, Spring Flapper Scrn | SM668 | 10 | 1SM668 | Bulk |
