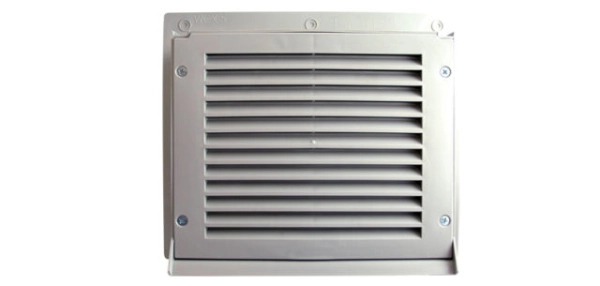

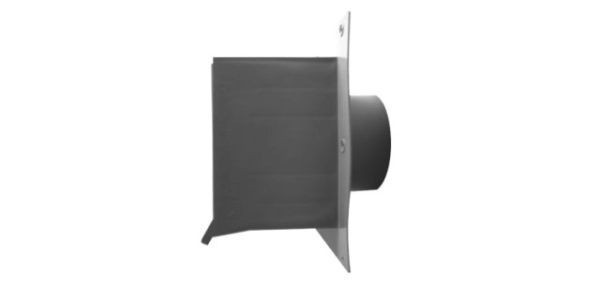

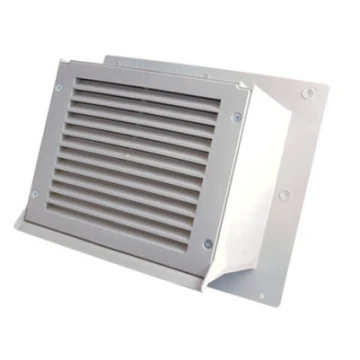

Primex WCXF Series – Flat Extended Brick Wall Cap
The Primex Flat Extended Brick Wall Cap (WCXF) increases the depth of the wall cap for use on the outside of brick and masonry structures while maintaining a very low profile. Available in 4”, 5”, and 6” sizes, this rainscreen compatible unit provides excellent, long term water protection.
FEATURE
- Suitable for brick and masonary walls and intake or exhaust applications.
- Compatible with rainscreen applications via extended base, compensating for cavity between sheathing and brick.
- Eliminates leaky joints, while maximizing water protection with one-piece molded base and built-in drip edge.
- Integrity of the building envelope is maintained via a removable hood for simple duct cleaning.
- Over-sized flange ensures water-tight installation.
- Made with UV-protected polymer resin for lasting durability.
- Highly resistant to mechanical impact and includes a built-in bird screen.
- Quick and easy installation.
COLORS
- Black (25)
- Tan (45)
- Light Grey (31)
- Dark Brown (68)
- Dark Grey (28)
- Snow White (01)
- Taupe (23)
FREE AREA
| Part # Screen | Size | Free Area | Description | Pkg |
| WCXF4 | 4" Dia. | 12.6 sq. in. | Fits 4" diameter duct | 9/box |
| WCXF5 | 5" Dia. | 19.6 sq. in | Fits 5" diameter duct | 9/box |
| WCSF6 | 6" Dia. | 28.3 sq. in | Fits 6" diameter duct | 9/box |
| Part # | Description | Size | Color | Each | Carton Qty |
|---|---|---|---|---|---|
| WCXF401 | 4" Extended Wall Cap, Flat | 4" | White | 1WCXF401 | 9 |
| WCXF423 | 4" Extended Wall Cap, Flat | 4" | Taupe | 1WCXF423 | 9 |
| WCXF425 | 4" Extended Wall Cap, Flat | 4" | Black | 1WCXF425 | 9 |
| WCXF428 | 4" Extended Wall Cap, Flat | 4" | Dark Grey | 1WCXF428 | 9 |
| WCXF431 | 4" Extended Wall Cap, Flat | 4" | Light Grey | 1WCXF431 | 9 |
| WCXF445 | 4" Extended Wall Cap, Flat | 4" | Tan | 1WCXF445 | 9 |
| WCXF468 | 4" Extended Wall Cap, Flat | 4" | Dark Brown | 1WCXF468 | 9 |
| WCXF501 | 5" Extended Wall Cap, Flat | 5" | White | 1WCXF501 | 9 |
| WCXF523 | 5" Extended Wall Cap, Flat | 5" | Taupe | 1WCXF523 | 9 |
| WCXF525 | 5" Extended Wall Cap, Flat | 5" | Black | 1WCXF525 | 9 |
| WCXF528 | 5" Extended Wall Cap, Flat | 5" | Dark Grey | 1WCXF528 | 9 |
| WCXF531 | 5" Extended Wall Cap, Flat | 5" | Light Grey | 1WCXF531 | 9 |
| WCXF545 | 5" Extended Wall Cap, Flat | 5" | Tan | 1WCXF545 | 9 |
| WCXF568 | 5" Extended Wall Cap, Flat | 5" | Dark Brown | 1WCXF568 | 9 |
| WCXF601 | 6" Extended Wall Cap, Flat | 6" | White | 1WCXF601 | 9 |
| WCXF623 | 6" Extended Wall Cap, Flat | 6" | Taupe | 1WCXF623 | 9 |
| WCXF625 | 6" Extended Wall Cap, Flat | 6" | Black | 1WCXF625 | 9 |
| WCXF628 | 6" Extended Wall Cap, Flat | 6" | Dark Grey | 1WCXF628 | 9 |
| WCXF631 | 6" Extended Wall Cap, Flat | 6" | Light Grey | 1WCXF631 | 9 |
| WCXF645 | 6" Extended Wall Cap, Flat | 6" | Tan | 1WCXF645 | 9 |
| WCXF668 | 6" Extended Wall Cap, Flat | 6" | Dark Brown | 1WCXF668 | 9 |
