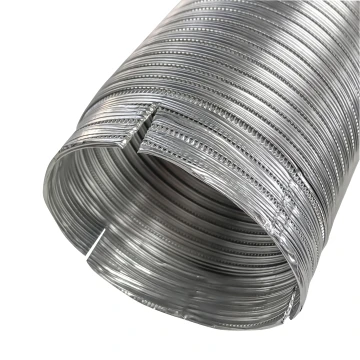

Readi-Pipe™ V450-TD and V430
V400 series Readi-Pipe™ is a durable semi-rigid flexible duct designed for clothes dryer venting. Factory made soft cuff pre-treated ends. These pre-treated ends save time and provide more secure connections.
PRODUCT FEATURES
- Soft cuff ends with slots
- Ships compressed
PRODUCT SPECIFICATIONS
- 100% aluminum roll formed with mechanical seams
- Class 0 metal duct, non-insulated
- UL® 2158A Clothes Dryer Transition Duct Available
PERFORMANCE DATA AIRFLOW
- Recommended Operating Pressure: Positive: 6" WC max Negative: 6" WC max
- Maximum velocity: 5,000 FPM
- Operating Temp. Range:-100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
INSTALLATION: Air duct connections and joins shall be made per installation instructions outlined by Builder's Best. (Installation instructions are included inside each carton.)
| Model | Diameter | Length | Clamps | Listing | Each # | Qty | Case # | Package | UPC | Label |
|---|---|---|---|---|---|---|---|---|---|---|
| V450-TD | 4" | 8' | n/a | UL® 2158A | 10545 | 12 | 110545 | Bulk | 722048105454 | |
| V450-TD | 4" | 6' | n/a | UL® 2158A | 11700 | 12 | 111700 | Bulk | 722048117006 | |
| V450-TD | 4" | 8' | 2 steel screw | UL® 2158A | 12102 | 12 | 112102 | Display Bag | 722048121027 | • |
| V430 | 4" | 4' | n/a | n/a | 10088 | 12 | 110088 | Bulk | 722048100886 | |
| V430 | 4" | 5' | n/a | n/a | 10089 | 12 | 110089 | Bulk | 722048100893 | |
| V430 | 4" | 6' | n/a | n/a | 10090 | 15 | 110090 | Bulk | 722048100909 | |
| V430 | 4" | 8' | n/a | n/a | 10091 | 12 | 110091 | Bulk | 722048100916 | |
| V430 | 4" | 8' | 2 steel screw | n/a | 10131 | 12 | 110131 | Display Bag | 722048101319 | • |
| V430 | 4" | 8' | 2 steel screw | n/a | 10132 | 144 | 610131 | Skid | 722048101319 | • |
