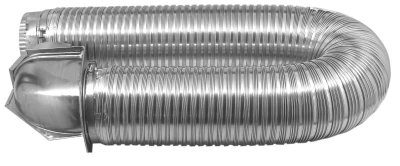

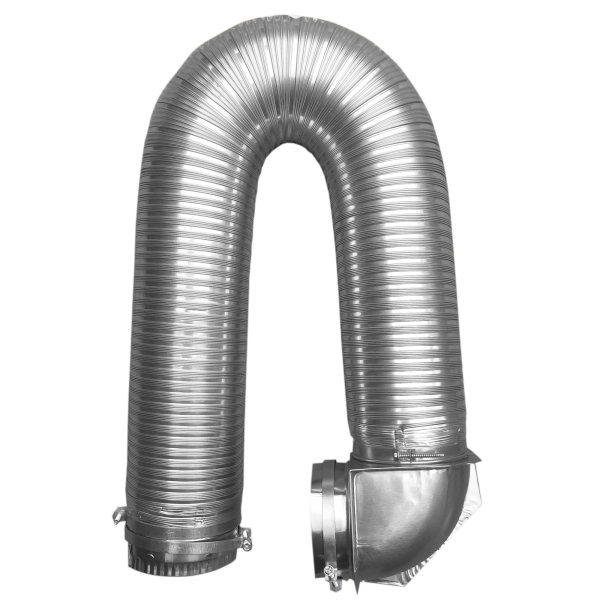

SEK-TD Single Elbow UL® Dryer Vent Kit

The 8' Single Elbow Dryer Vent Kit is UL2158A listed for clothes dryer venting. It features one 8 foot section of pipe attached to one Close Elbow®. Two clamps are provided for wall and dryer connections.

SAF-T-DUCT® is designed specifically for clothes dryers. Snap-Lock™ fittings, pre-treated ends, heavy duty aluminum and close clearance are features included the SAF-T-DUCT® product line.

KIT CONTAINS

One - 8 foot duct
One - Close Elbow®
Two - steel screw clamps for wall and dryer connections

PERFORMANCE DATA

Pressure rating: Maximum positive and negative UL 12" w.g., non-UL 6" w.g.
Operating Temp. range: -100˚F to +430˚F
Flame Spread: 0
Smoke Developed: 0

RECOMMENDATIONS

Meets UL2158A the clothes dryer venting certification.
Clothes dryer manufacturers and building codes recommend all metal venting.

Single Elbow Kit Instructions

Single Elbow Kit Spec Sheet

Model	Length	Elbows	Clamps	Listing	Each#	Qty	Case#	Package	UPC	Label	Diameter
Single Elbow Kit	8'	1 Close Elbows®	2 steel screws	UL® 2158A	12423	4	11243	Ind. Box	722048124233	•	4"
