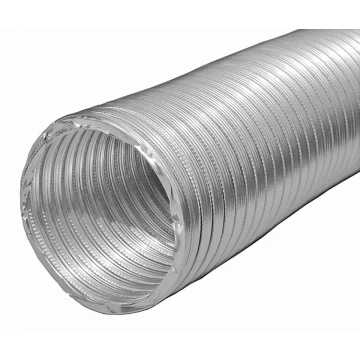

V230 Flexible Pipe PRO Plain Ends
The V230 PRO Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust.
PRODUCT FEATURES
- Plain ends
- 8 ft length ships compressed to 24 in
PRODUCT SPECIFICATIONS
- Thicker wall than V220
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Class 0 metal duct, non-insulated
- Non-combustible corrugated aluminum with continuous lockseams
PERFORMANCE DATA AIRFLOW
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Package | UPC | Label | Diameter | Length | Clamps | Each # | Qty | Part # |
|---|---|---|---|---|---|---|---|---|---|
| V230 | Bulk | 722048102507 | 3" | 8' | n/a | 10250 | 20 | 110250 | |
| V230 | Bulk | 722048102514 | 3" | 10' | n/a | 10251 | 20 | 110251 | |
| V230 | Bulk | 722048104013 | 3" | 20' | n/a | 10401 | 25 | 110401 | |
| V230 | Bulk | 722048102521 | 3" | 25' | n/a | 10252 | 25 | 110252 | |
| V230 | Bulk | 722048100879 | 4" | 8' | n/a | 10087 | 12 | 110087 | |
| V230 | Bulk | 722048102538 | 4" | 10' | n/a | 10253 | 12 | 110253 | |
| V230 | Skid | 722048102538 | 4" | 10' | n/a | 10253 | 240 | 710523 | |
| V230 | Bulk | 722048104020 | 4" | 20' | n/a | 10402 | 16 | 110402 | |
| V230 | Bulk | 722048103153 | 4" | 25' | n/a | 10315 | 16 | 110315 | |
| V230 | Bulk | 722048102552 | 5" | 8' | n/a | 10255 | 6 | 011476 | |
| V230 | Bulk | 722048102569 | 5" | 10' | n/a | 10256 | 9 | 110256 | |
| V230 | Bulk | 722048102576 | 5" | 20' | n/a | 10257 | 9 | 110257 | |
| V230 | Bulk | 722048102583 | 6" | 8' | n/a | 10258 | 4 | 011479 | |
| V230 | Skid | 722048102583 | 6" | 8' | n/a | 10258 | 72 | 710258 | |
| V230 | Bulk | 722048102590 | 6" | 10' | n/a | 10259 | 12 | 110259 | |
| V230 | Bulk | 722048102606 | 6" | 20' | n/a | 10260 | 6 | 110260 | |
| V230 | Bulk | 722048102613 | 7" | 8' | n/a | 10261 | 4 | 011482 | |
| V230 | Bulk | 722048102620 | 7" | 10' | n/a | 10262 | 8 | 110262 | |
| V230 | Bulk | 722048102637 | 7" | 20' | n/a | 10263 | 4 | 110263 | |
| V230 | Bulk | 722048102644 | 8" | 8' | n/a | 10264 | 4 | 110264 | |
| V230 | Bulk | 722048102651 | 8" | 10' | n/a | 10265 | 6 | 011487 | |
| V230 | Bulk | 722048102668 | 8" | 20' | n/a | 10266 | 4 | 110266 | |
| V230 | Bulk | 722048102675 | 9" | 8' | n/a | 10267 | 4 | 110267 | |
| V230 | Bulk | 722048102682 | 9" | 10' | n/a | 10268 | 4 | 110268 | |
| V230 | Bulk | 722048102699 | 9" | 20' | n/a | 10269 | 4 | 110269 | |
| V230 | Bulk | 722048103832 | 10" | 8' | n/a | 10383 | 4 | 110383 | |
| V230 | Bulk | 722048103849 | 10" | 10' | n/a | 10384 | 4 | 110384 | |
| V230 | Bulk | 722048103856 | 10" | 20' | n/a | 10385 | 4 | 110385 | |
| V230 | Bulk | 722048102477 | 12" | 8' | n/a | 10247 | 4 | 110247 | |
| V230 | Bulk | 722048102484 | 14" | 8' | n/a | 10248 | 2 | 110248 | |
| V230 | Display Bag | 722048104600 | • | 4" | 8' | 2 steel screw clamps | 10460 | 12 | 110460 |
