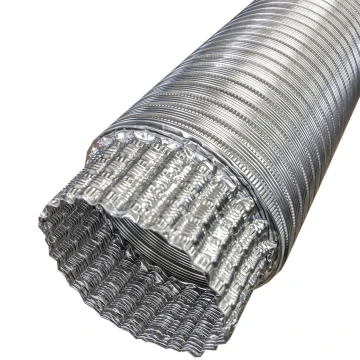

V320 Flexible Pipe Crimped
The V320 Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust with one end crimped for smoother connections.
PRODUCT FEATURES
- One end crimped and one plain end
- 8 ft length ships compressed to 24 in
PRODUCT SPECIFICATIONS
- Thinner wall than V330 PRO
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Non-combustible corrugated aluminum with continuous lockseams
- Class 0 metal duct, non-insulated
PERFORMANCE DATA
- Pressure rating: Maximum positive and negative 3" thru 8" diameters = 6" w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each # | Qty | Case # | Package | UPC | UPC labeled |
|---|---|---|---|---|---|---|---|---|
| V320 | 3" | 8' | 10443 | 10 | 110443 | Display Bag | 722048104433 | • |
| V320 | 3" | 8' | 10433 | 20 | 011458 | Bulk | 722048104334 | |
| V320 | 4" | 8' | 10444 | 12 | 110444 | Display Bag | 722048104440 | • |
| V320 | 4" | 8' | 10434 | 12 | 110434 | Bulk | 722048104341 | |
| V320 | 4" | 8' | 10434 | 240 | 710434 | Skid | 722048104341 | |
| V320 | 4" | 20' | 10439 | 16 | 110439 | Bulk | 722048104396 | |
| V320 | 5" | 8' | 10445 | 6 | 110445 | Display Bag | 722048104457 | • |
| V320 | 5" | 8' | 10435 | 6 | 110435 | Bulk | 722048104358 | |
| V320 | 6" | 8' | 10446 | 4 | 011463 | Display Bag | 722048104464 | • |
| V320 | 6" | 8' | 10436 | 4 | 010431 | Bulk | 722048104365 | |
| V320 | 7" | 8' | 10447 | 4 | 011465 | Display Bag | 722048104471 | • |
| V320 | 7" | 8' | 10437 | 4 | 011466 | Bulk | 722048104372 | |
| V320 | 8" | 8' | 10448 | 4 | 011468 | Display Bag | 722048104488 | • |
| V320 | 8" | 8' | 10438 | 4 | 011469 | Bulk | 722048104389 | |
