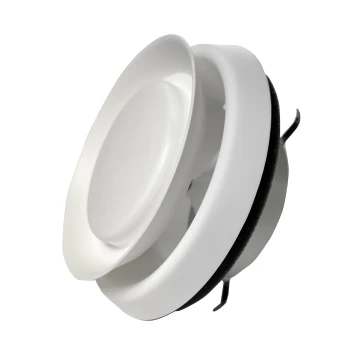

WG Adjustable Diffusers
- Dual flow for intake or exhaust
- Stainless steel grip "clip" for snug fit
- Foam gasket allows for tight seal on uneven surfaces
- Lock nut included to adjust air flow
- Long-lasting durability with UV- protected, impact resistant, polymer resin
- Ceiling or wall mountable
FEATURES & BENEFITS
- Dual flow: whisper quiet air supply or exhaust with lock nut to fine tune air flow from 0-100%.
- Strong stainless steel grip clip provides snug fit.
- Extra thick foam gasket allows for tight seal on uneven surfaces and provides quiet air flow.
- Long-lasting durability with impact resistant, polymer resin.
- WG401 vent is compatible with Primex’s squeeze elbow accessory EB4x90.
- Easy to install and remove.
| Diameter | A | B | C | D |
| 4" | 6 | 2 | 3.1 | .8 |
| 5" | 7 | 2.83 | 3.9 | .82 |
| 6" | 8 | 3 | 4.9 | .8 |
COLOURS
- Snow White (01)
APPLICATIONS
- Heat Recovery Venting (HRV)
- Bathroom Venting
- Intake
| Part # | Size | Free Area | Description | Pkg |
| WG401 | 4" | 5.5 sq. in. | Use w/EB4x90 | 25/box |
| WG501 | 5" | 9.9 sq. in. | Adjustable diffuser | 25/box |
| WG601 | 6" | 11.4 sq. in. | Adjustable diffuser | 25/box |
| Diameter | Old Part # | Qty | New Case # | Package | Free Area | Note |
|---|---|---|---|---|---|---|
| 4" | 111862 | 12 | WG401 | Bulk | 5.5 sq. in. | Special Order |
| 5" | 111864 | 12 | WG501 | Bulk | 9.9 sq. in. | Special Order |
| 6" | 111865 | 8 | WG601 | Bulk | 11.4 sq. in. | Special Order |
