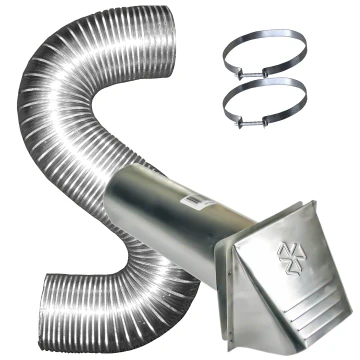

WHK Wall Hood Kit Aluminum Duct with Hood
These Wall Hood Kits contain all metal aluminum duct, hoods with 10 inch tails, and two clamps. They meet clothes dryer manufacturer specifications for venting.
KIT CONTAINS:

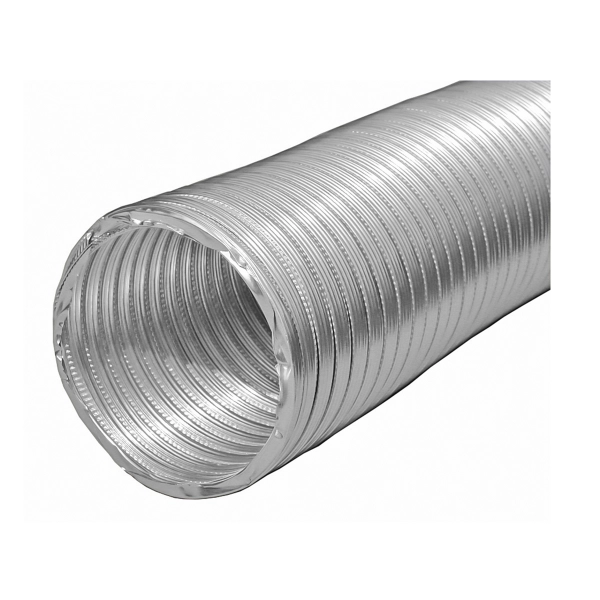

- One - 5 foot or 8 foot plain ended aluminum duct (see table for models below)
- One - Hood (see table for models below)

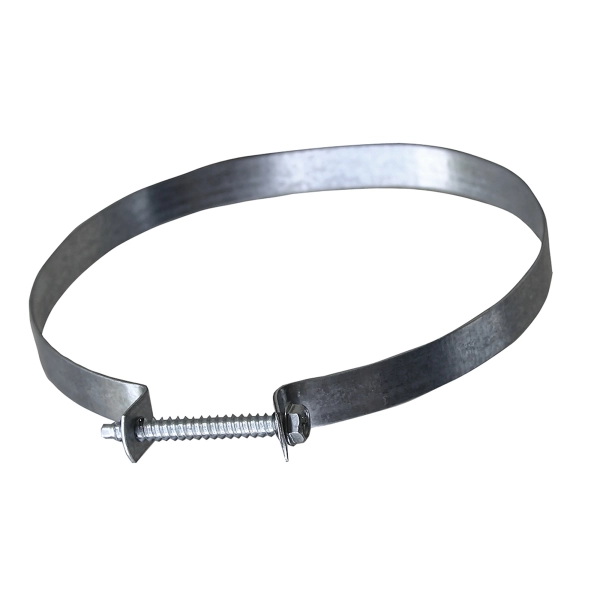

- Two - steel screw clamps for wall and dryer connections
PERFORMANCE DATA
Pressure rating: Maximum positive and negative UL 12" w.g., non-UL 6" w.g.
Operating Temp. range: -100˚F to +430˚F
Flame Spread: 0
Smoke Developed: 0
RECOMMENDATIONS
Clothes dryer manufacturers and building codes recommend all metal venting.
| Model | Case# | Package | UPC | Label | Diameter | Length | Duct | Hood | Clamps | Each# | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WHK Wall Hood Kit | 112101 | Ind. Box | 722048121010 | • | 4" | 5' | V230 Plain | Wide Mouth Aluminum | 2 steel screw clamps | 12101 | 4 |
| WHK Wall Hood Kit | 110536 | Bulk | 722048105362 | 4" | 8' | V230 Plain | Wide Mouth Aluminum | 2 steel screw clamps | 10536 | 4 | |
| WHK Wall Hood Kit | 110625 | Ind. Box | 722048106253 | • | 4" | 8' | V220 Plain | White Wide Mouth Plastic | 2 steel screw clamps | 10625 | 12 |
| WHK Wall Hood Kit | 110626 | Ind. Box | 722048106260 | • | 4" | 8' | V220 Plain | Brown Wide Mouth Plastic | 2 steel screw clamps | 10626 | 12 |
| WHK Wall Hood Kit | 112100 | Ind. Box | 722048121003 | • | 4" | 8' | V220 Plain | Brown Louvered Plastic | 2 steel screw clamps | 12100 | 6 |
| WHK Wall Hood Kit | 111405 | Display Box | 722048114050 | • | 4" | 8' | V220 Plain | White Louvered Plastic | 2 steel screw clamps | 11405 | 6 |
| WHK Wall Hood Kit | 110537 | Display Box | 722048105379 | • | 4" | 5' | V220 Plain | Wide Mouth Aluminum | 2 steel screw clamps | 10537 | 4 |
