Wire Helix Aluminum Foil Hose Kits SilverDuct™ Kits with Hoods
SilverDuct™ Kits with hoods feature 5ft or 8ft of model WMF661 SilverDuct, a hood and two Zip Torq™ clamps. SilverDuct™ is a wire helix aluminum foil hose with the UL® 2158A label for clothes dryer transition duct.
KIT CONTAINS:

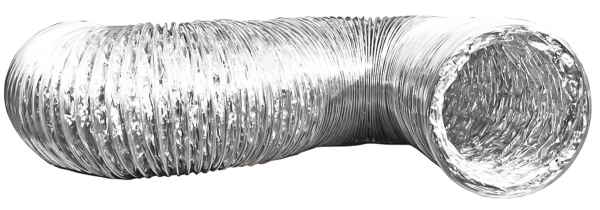

5ft or 8ft model WMF661 SilverDuct™:
- Steel wire helix duct
- Multi-ply design of aluminum/polyester laminate and metalized polyester
- UL® 2158A listed and labeled as foil dryer transition duct
One hood, either:
- PML320 plastic multi louver in white or brown

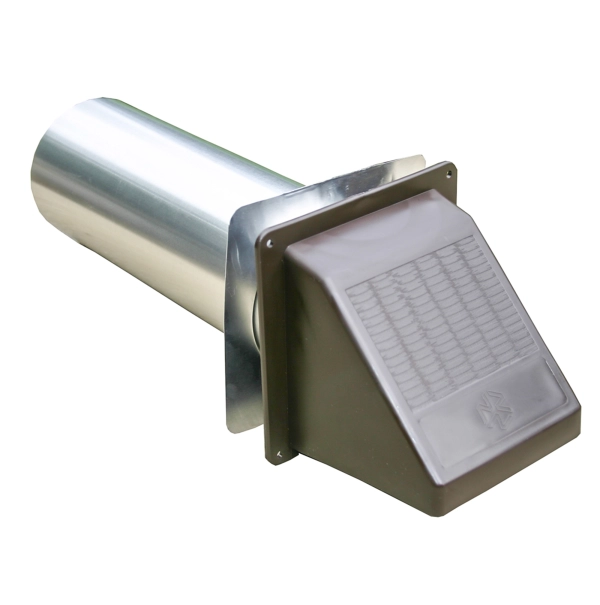

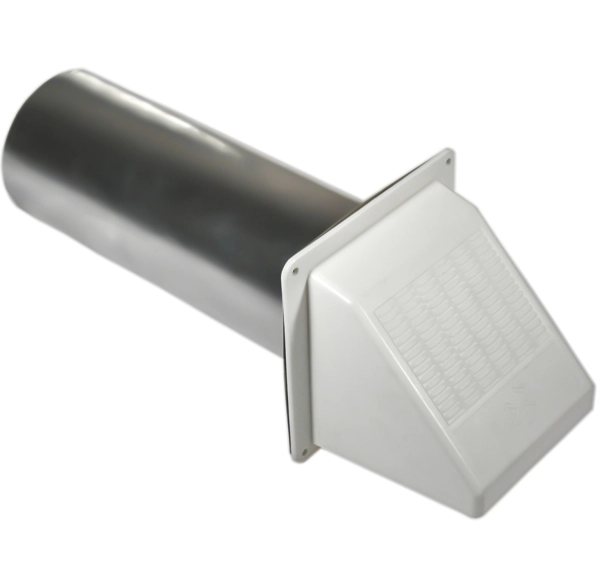

- PWM624 plastic wide mouth with removable screen in white or brown Two Zip Torq™ clamps
WARNINGS
- UL® 2158A approval only for installations of 8 feet or less
- Foil ducts crush easily and may contribute to lint build-up, creating a fire hazard
- Foil duct is not recommended by Builder’s Best as dryer venting
- Check your clothes dryer manufacturer manual as installation may invalidate warranties
- Check local building codes for appropriate use
PERFORMANCE DATA
- Recommended Operating Pressure: 6" w.g. positive - all diameters
- Temperature Range: -20°F to +200°F
- Flame Speed: less than 25
- Smoke Developed: less than 50
- Max Velocity: 5000 fpm
Installation: Connections shall be made per installation instructions outlined by the appliance manufacturer and UL® 2158A.
| Model | Clamps | Each # | Qty | Part # | Package | UPC | Label | Hose | Hood |
|---|---|---|---|---|---|---|---|---|---|

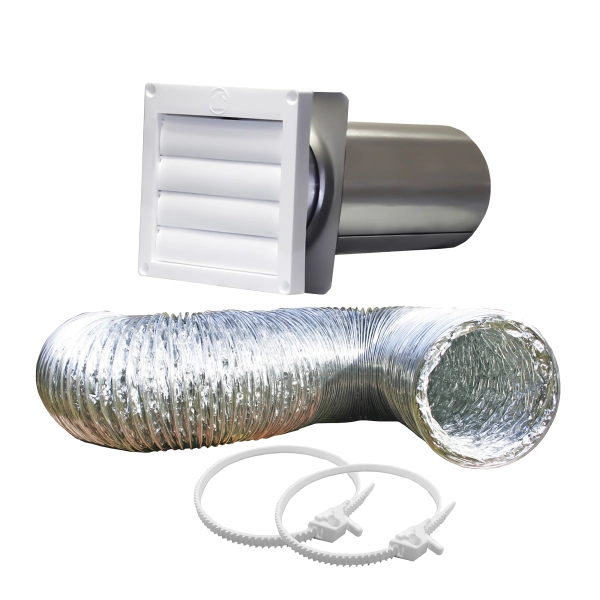

| WHK Kit | 2 ZipTorq | 11406 | 6 | 111406 | Display Box | 722048114067 | • | 4" x 5' SilverDuct™ | PML320 White louvered |
| WHK Kit | 2 ZipTorq | 11407 | 6 | 111407 | Display Box | 722048114074 | • | 4" x 8' SilverDuct™ | PML320 White louvered |

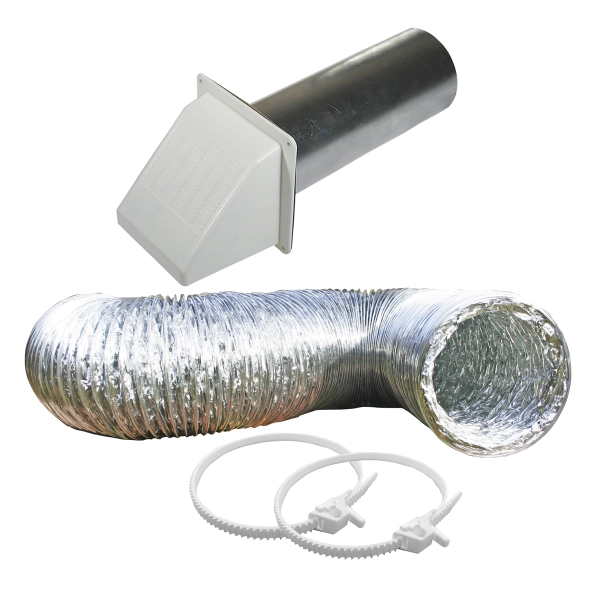

| WHK Kit | 2 ZipTorq | 11408 | 8 | 111408 | Display Box | 722048114081 | • | 4" x 8' SilverDuct™ | PWM624 White wide mouth bird guard |

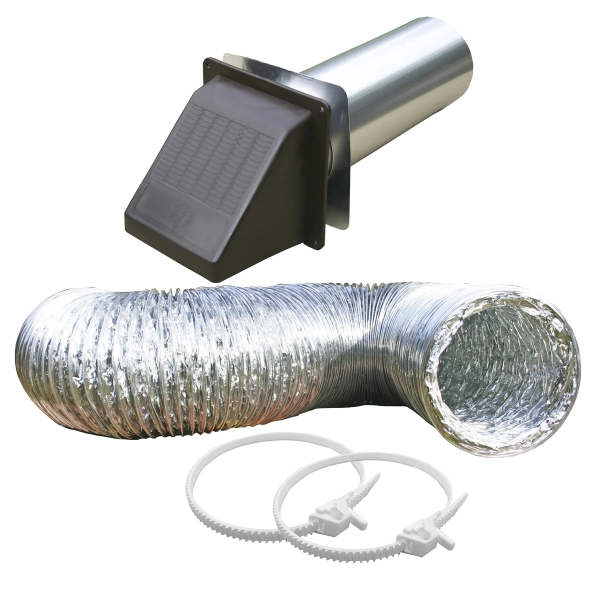

| WHK Kit | 2 ZipTorq | 11528 | 8 | 111528 | Display Box | 722048115286 | • | 4" x 8' SilverDuct™ | PWM624 Brown wide mouth bird guard |
