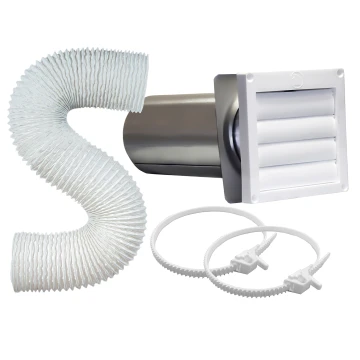

Wire Helix Poly Vinyl Hose WHK Pro Vinyl Bath Vent Kits
These kits are suitable for installations which do not require a UL® label.
4" x 8' WPV601 PRO Vinyl Hose:
- Steel wire support
- 1½" Pitch
One of the following hoods:
AWM320 Aluminum Wide Mouth Vent Hood
- 11.5" fully assembled, riveted tailpipe
- Back draft flapper
PML320 Louvered Plastic Hood in White or Brown
- Low profile with freeswinging louvers
- 11" fully assembled, riveted tailpipe
PMW624 Wide mouth plastic hood with bird guard
- 11" fully assembled, riveted tailpipe
- ½" × ½" pest grid snaps in and removable for cleaning
Two 4" Zip Torque™ Plastic clamps
- Unique polymeric stretch plastic
- Tightens without tools and loosens with #2 phillips screwdriver
- US Patent 9,377,141 B2
PERFORMANCE DATA - VINYL
- Recommended Operating Pressure:
- Max positive: 1" w.g. -all diameters
- Max negative: ½" w.g. - all diameters
- Maximum velocity: 2,000 FPM
- Operating Temp. Range:
- -20°F to 100°F continuous
- -20°F to 120°F intermittent
RECOMMENDATIONS
Useful as bathroom fan venting. Not approved for dryer venting.
The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.
| Model | Part # | Package | UPC | Labeled | Hose | Hood | Clamps | Each# | QTY |
|---|---|---|---|---|---|---|---|---|---|
| WHK Wall Hood Kit | 111522 | Display Box | 722048115224 | • | 4" x 8' PRO Vinyl | AWM320 Wide mouth aluminum | 2 ZipTorq | 11522 | 8 |
| WHK Wall Hood Kit | 111510 | Display Box | 722048115101 | • | 4" x 8' PRO Vinyl | PML320 Brown louvered plastic | 2 ZipTorq | 11510 | 6 |
| WHK Wall Hood Kit | 111511 | Display Box | 722048115118 | • | 4" x 8' PRO Vinyl | PML320 White louvered plastic | 2 ZipTorq | 11511 | 6 |
| WHK Wall Hood Kit | 111517 | Display Box | 722048115170 | • | 4" x 8' PRO Vinyl | PWM624 White wide mouth plastic with bird guard | 2 ZipTorq | 11517 | 8 |
