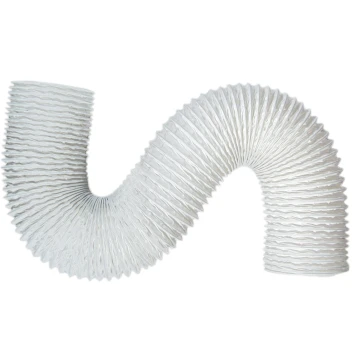

Wire Helix Poly Vinyl Hose WPV601 Pro Vinyl Duct

PRODUCT FEATURES

• White vinyl tubing
• High tensile steel wire support with 1" pitch permanently heat sealed between layers of poly vinyl chloride (PVC) film
• Bend radius one diameter

PERFORMANCE DATA

• Recommended Operating Pressure:
  • Max positive: 1" w.g. -all diameters
  • Max negative: ½" w.g. - all diameters
• Maximum velocity: 2,000 FPM
• Operating Temp. Range:
  • -20°F to 100°F continuous
  • -20°F to 120°F intermittent

RECOMMENDATIONS

• Useful as bathroom fan venting. Not approved for dryer venting.
• The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
• Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.”
