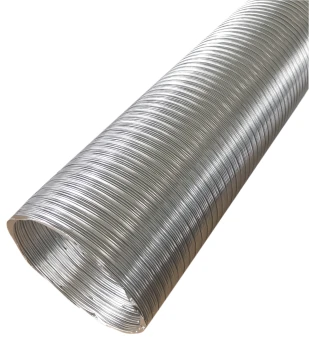

A250-TD Plain Ends A-Seam™
A250-TD Plain End A-Seam™ is a durable semi-rigid flexible duct meeting UL® 2158A specifications designed for clothes dryer venting. The patented design allows for better compression without making it harder to pull it back out for installation. It is an easily bent, compressed duct which takes less space in the warehouse.
PRODUCT FEATURES
- Plain ends
- Ships compressed
PRODUCT SPECIFICATIONS
- 100% aluminum roll formed with mechanical seams
- Class 0 metal duct, non-insulated
- 30" strength angles between ribs
- UL® 2158A Clothes Dryer Transition Duct
PERFORMANCE DATA AIRFLOW
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
INSTALLATION: Air duct connections and joins shall be made per installation instructions outlined by Builder's Best.(Installation instructions are included inside each carton.)
| Model | Case# | Packaging | UPC | Label | Diameter | Length | Clamps | Listing | Each# | Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| A250 | 112103 | Bag | 722048121034 | • | 4" | 8' | 2 steel screw clamps | UL® 2158A | 12103 | 12 |
