EVK Elbow Vent Kit
EVK Elbow Vent Kits are all metal dryer vent kits which meet clothes dryer manufacturer specifications. The Close Elbow® makes 90˚ turns within 4 inches, which saves space behind the dryer and also saves duct for the length of run. Close Elbows® provide the best airflow at turns, better than duct alone, resulting in a highly efficient transition duct.

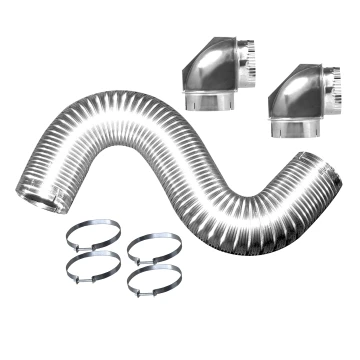

KIT CONTAINS (SEE TABLE BELOW)
- One - 6' or 8 foot duct, see table below
- Two - Close Elbows®
- 2 or 4 - steel screw clamps V830 duct snaps to the Close Elbows®; clamps are used at the dryer and wall V430 duct requires clamps to secure elbows to duct, and at dryer and wall
PERFORMANCE DATA
- Pressure rating: Maximum positive and negative UL 12" w.g., non-UL 6" w.g.
- Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
RECOMMENDATIONS
Clothes dryer manufacturers and building codes recommend all metal venting.
| Model | Clamps | Each # | Qty | Case Part # | Package | UPC | Label | Diameter | Length | Duct | Elbows |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EVK Elbow Vent Kit | 2 steel screws | 10043 | 4 | 110043 | Ind. Box | 722048100435 | • | 4" | 6' | V830 Builder's Best | 2 Close Elbows® |
| EVK Elbow Vent Kit | 4 steel screws | 10049 | 4 | 110049 | Ind. Box | 722048100497 | • | 4" | 6' | V430 Readi-Pipe | 2 Close Elbows® |
| EVK Elbow Vent Kit | 4 steel screws | 10050 | 4 | 110050 | Ind. Box | 722048100503 | • | 4" | 8' | V430 Readi-Pipe | 2 Close Elbows® |
