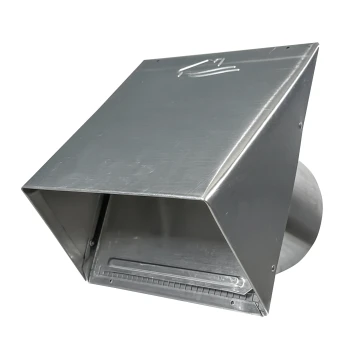

AWM624 Aluminum Heavy Gauge Hood with Flapper & Screen

AWM624 is an aluminum wide mouth heavy duty hood with a flapper & screen.

Resources:



Categories: , , , , , Tag:

Description

  • Riveted construction
  • 4 mounting holes for secure connections
  • 020 mill finish aluminum
  • Back draft flapper
    • 4″ – 7″ with channel for sound dampening foam (foam not included)
    • 8″ – 12″ no channel
  • 1/4″ x 1/4″ screen mechanically inserted and removable





Part Number Table

ModelDia.TailFlapperScreenEach #QtyCase #PkgUPCLabelA (in.)B (in.)C (in.)D (in.)E (in.)Open Area
AWM6244"n/aflapper¼"x¼" removable1118720111187Bulk7220481118753.3755.257n/a418.75
AWM6245"n/aflapper¼"x¼" removable1244812112448Bulk7220481244864.58.2510n/a5.37540
AWM6246"n/aflapper¼"x¼" removable1245112112451Bulk7220481245164.58.2510n/a5.37540
AWM6247"n/aflapper¼"x¼" removable1245412112454Bulk7220481245474.58.2510n/a5.37540
AWM6248"n/aflapper¼"x¼" removable1119512111195Bulk7220481119504.510.2511.25n/a5.552
AWM62410"n/aflapper¼"x¼" removable111972111197Bulk7220481119746.2512.2514.25n/a780
AWM62412"n/aflapper¼"x¼" removable111992111199Bulk7220481119986.2514.2514.25n/a799
AWM6244"6"flapper¼"x¼" removable1105612111056Bulk7220481105648.8755.2575.5418.75
AWM6245"6"flapper¼"x¼" removable1244912112449Bulk72204812449310.258.25105.55.37540
AWM6246"6"flapper¼"x¼" removable1245212112452Bulk72204812452310.258.25105.55.37540
AWM6247"6"flapper¼"x¼" removable1245512112455Bulk72204812455410.258.25105.55.37540
AWM6248"6"flapper¼"x¼" removable1106310111063Bulk72204811063210.2510.2511.255.55.552
AWM62410"6"flapper¼"x¼" removable110642111064Bulk72204811064911.7512.2514.255.5780
AWM62412"6"flapper¼"x¼" removable110652111065Bulk72204811065611.7514.2514.255.5799
AWM6244"11"flapper¼"x¼" removable1104512011046Bulk72204811045814.55.25711.25418.75
AWM6245"11"flapper¼"x¼" removable124506112450Bulk72204812450915.758.251011.255.37540
AWM6246"11"flapper¼"x¼" removable124536112453Bulk72204812453015.758.251011.255.37540
AWM6247"11"flapper¼"x¼" removable124566112456Bulk72204812456115.758.251011.255.37540
AWM6248"11"flapper¼"x¼" removable110516111051Bulk7220481105191610.2511.2511.255.552
AWM62410"11"flapper¼"x¼" removable110521011052Ind Box722048110526•17.512.2514.2511.25780
AWM62412"11"flapper¼"x¼" removable110531011053Ind Box722048110533•17.514.2514.2511.25799
