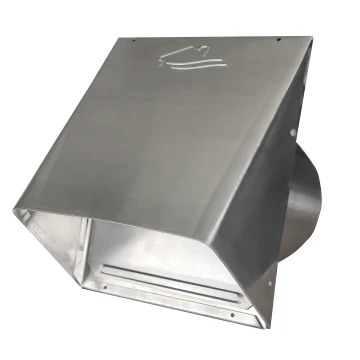

AWM630 Aluminum Heavy Gauge Hood with Spring Flapper

AWM630 is a heavy duty hood with a spring flapper

Resources:

Categories: , , , , , Tag:

Description

  • Riveted construction
  • 4 mounting holes for secure connections
  • 020 mill finish aluminum
  • Spring flapper
    • 4″- 7″ with channel for sound dampening foam (foam not included)
    • 8″ – 12″ no channel

Built in the USA by Builder’s Best

Part Number Table

ModelDia.Tail FlapperScreenEach #QtyCase #PkgUPCLabelA (in.)B (in.)C (in.)D (in.)E (in.)Open Area
AWM6304"n/aspring flappern/a1181320111813Bulk7220481181333.3755.257n/a418.75
AWM6304"6"spring flappern/a1182012111820Bulk7220481182018.8755.2575.5418.75
AWM6305"6"spring flappern/a1245712112457Bulk72204812457810.258.25105.55.37540
AWM6306"n/aspring flappern/a1245812112458bulk7220481245854.58.2510n/a5.37540
AWM6306"3"spring flappern/a124596112459bulk7220481245927.6258.25103.1255.37540
AWM6306"6"spring flappern/a1246012112460Bulk72204812460810.258.25105.55.37540
AWM6306"6"spring flappern/a124611012461Ind Box722048124615•10.258.25105.55.37540
AWM6307"6"spring flappern/a1246212112462Bulk72204812462210.258.25105.55.37540
AWM6308"6"spring flappern/a1182310111823Bulk72204811823210.2510.2511.255.55.552
AWM6308"6"spring flappern/a120851012085Ind Box722048120853•10.2510.2511.255.55.552
AWM63010"6"spring flappern/a118242111824Bulk72204811824911.7512.2514.255.5780
AWM63012"6"spring flappern/a118252111825Bulk72204811825611.7512.2514.255.5799
111813 111820 112457 112458 112459 112460 012461 112462 111823 012085 111824 111825 111821 111811 111906 111387 011641 111822

Similar Models

Spec Sheets:

AWM604 screen Spec Sheet

AWM620 flapper Spec Sheet

AWM624 flapper & screen Spec Sheet

AWM630 spring flapper Spec Sheet

AWM634 spring flapper and screen Spec Sheet
