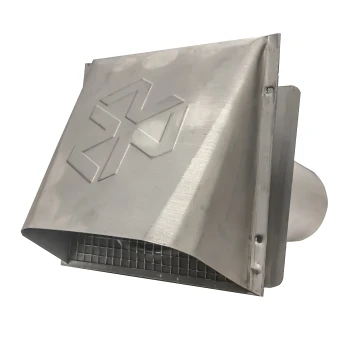

GSM404/GSM420 P-Tanium™ Standard Mouth Hood

The GSM400 series is a durable galvanized wall vent hood made with P-Tanium™ paintable galvanized steel. The gray matte finish can be left unpainted if desired. This series comes in two different models:

GSM404 Standard Mouth with Screen
GSM420 Standard Mouth with Flapper

Resources:

Categories: All Bathroom Fan Venting, All Dryer Venting, All HVAC, Galvanized Wall Vents, Vent Hoods, Wall Vent Hoods Tags: Bathroom Fan Venting, Dryer Venting, made in USA

Description
Part Number Table

Description

Riveted construction
Four mounting holes
Galvanized trim plate
Model GSM420 has a flapper with channel for sound dampening foam (not included)

Part Number Table

Model	Diameter	Tail Length	Mouth	Flapper	Screen	Each #	Qty	Case #	Package	UPC	Labeled	A(in)	B(in)	C(in)	D(in)	E(in)
GSM404	4"	11.5"	Standard	n/a	1/4" x 1/4"	10729	12	110729	Bulk	722048107298	•	14	6	6	11.5	2.75
GSM420	3"	11.5"	Standard	flapper	n/a	10883	12	110883	Bulk	722048108837		14	6	6	11.5	2.75
GSM420	4"	flush	Standard	flapper	n/a	11419	24	111419	Bulk	722048104197		2.5	6	6	n/a	2.75
GSM420	4"	11.5	Standard	flapper	n/a	10885	12	110885	Bulk	722048108851	•	14	6	6	11.5	2.75
GSM420	4"	11.5"	Standard	flapper	n/a	10750	4	110750	Ind. Box	722048107502	•	14	6	6	11.5	2.75
P-Tanium™ Trim Plate	3"					10056	100	110056	Bulk	722048100565
P-Tanium™ Trim Plate	4"					10057	100	110057	Bulk	722048100572

110729 110883 110885 110750 111419 10056 10057
