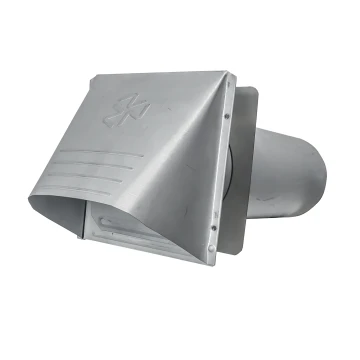

GWM420 P-Tanium™ Galvanized Wide Mouth Hood with Flapper
The GWM420 is a galvanized wide mouth wall vent hood made with durable P-Tanium™ paintable galvanized steel. The dark gray matte finish can be left unpainted if desired.
PRODUCT FEATURES
- Flapper with 1/4" channel for sound dampening foam (foam not included)
- Four mounting holes
- P-Tanium™ trim plate included with 11.5" tail
PRODUCT SPECIFICATIONS
- 30 gauge paintable galvanized
- Tailpipe connected with 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | Case # | Package | UPC | Label | A(in) | B(in) | C(in) | D(in) | E(in) | Open Area | Dia. | Tail Length | Flapper | Screen | Mouth | Each # | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM420 | 110887 | Bulk | 722048108875 | • | 3.5 | 6 | 6 | 11.5 | 4 | 15.75 | 3" | 11.5" | flapper | n/a | wide | 10887 | 12 |
| GWM420 | 111157 | Bulk | 722048111578 | 3.5 | 6 | 6 | 0 | 4 | 15.75 | 4" | n/a | flapper | n/a | wide | 11157 | 24 | |
| GWM420 | 110648 | Display Tray | 722048106482 | • | 3.5 | 6 | 6 | 11.5 | 4 | 15.75 | 4" | 11.5" | flapper | n/a | wide | 10648 | 6 |
| GWM420 | 111430 | Display Card | 722048114302 | • | 3.5 | 6 | 6 | 11.5 | 4 | 15.75 | 4" | 11.5" | flapper | n/a | wide | 11430 | 8 |
| GWM420 | 110889 | Bulk | 722048108899 | • | 3.5 | 6 | 6 | 11.5 | 4 | 15.75 | 4" | 11.5" | flapper | n/a | wide | 10889 | 12 |
| GWM420 | 710889 | Skid | 722048108899 | • | 3.5 | 6 | 6 | 11.5 | 4 | 15.75 | 4" | 11.5" | flapper | n/a | wide | 10889 | 240 |
| P-Tanium™ Trim Plate | 110056 | Bulk | 722048100565 | 3" | 10056 | 100 | |||||||||||
| P-Tanium™ Trim Plate | 11057 | Bulk | 722048100572 | 4" | 10057 | 100 | |||||||||||
