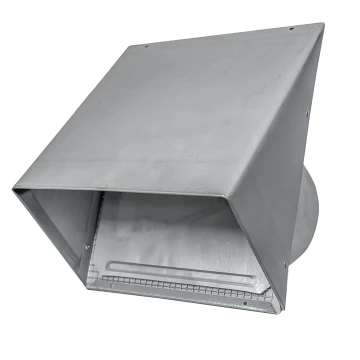

GWM734 P-Tanium™ Galvanized Wide Mouth Heavy Hood with Spring Flapper & 1/4″ Screen

GWM734 is a paintable galvanized wide mouth heavy gauge hood with spring flapper & 1/4″ x 1/4″ screen. It is made with P-Tanium™ paintable galvanized steel. The dark gray matte finish can be left unpainted if desired.

Resources:

Categories: All Bathroom Fan Venting, All HVAC, Galvanized Wall Vents, Wall Vent Hoods Tag: made in USA

Description

Riveted construction
Tailpipe connects with 360˚ mechanical seam
Mouth opening exceeds pipe area
Spring flapper with channel for sound dampening foam (foam not included)
4 mounting holes for secure connections
Plain face (no logo)

Part Number Table

Model	Dia.	Tail	Flapper	Screen	Each #	Qty	Case #	Pkg	UPC	A(in)	B(in)	C(in)	D(in)	E(in)	Open Area
GWM734	4"	n/a	spring flapper	¼"x¼" removable	12581	20	112581	Bulk	722048125810	3.375	5.25	7	5.5	4	18.75
GWM734	4"	6"	spring flapper	¼"x¼" removable	11842	12	111842	Bulk	722048118423	8.875	5.25	7	5.5	4	18.75
GWM734	6"	n/a	spring flapper	¼"x¼" removable	12582	12	112582	Bulk	722048125827	4.5	8.25	10	5.5	5.375	40
GWM734	6"	6"	spring flapper	¼"x¼" removable	12528	12	112528	Bulk	722048125282	10.25	8.25	10	5.5	5.375	40
GWM734	8"	n/a	spring flapper	¼"x¼" removable	12588	12	112588	Bulk	722048125889	4.5	10.25	11.25	n/a	5.5	52

112581, 111842, 112582, 112528, 112588
