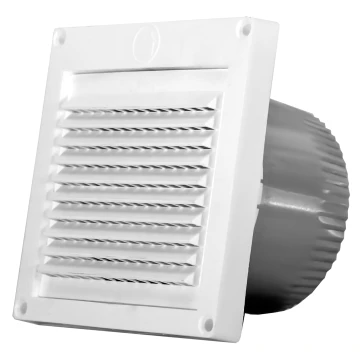

PFL344 Plastic Fixed Louver Mini Louver Hood with 1/4-in Grid
The PFL344 Mini Louver Hood features a 1/4" x 1/4" grid which provides protection against pests.
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- 4 mounting holes
- 3"- 4" diameters have a 1/4" x 1/4" molded fixed louver grid
- 5" - 8" diameters have a 1/2" x 1/2" molded fixed louver grid plus a 1/4" x 1/4" molded grid on the inside frame
- See table for connection lengths
RECOMMENDATION
- The PFL344 is good for eave and side wall venting.
- The PFL342 can be used as intake or exhaust.
- Not recommended for dryer venting.
FLUSH
| Dia. | A | B | C | D | E | F | G | Molded Fixed Louver Grid | Inside Grid |
| 3" | .625 | 5.5 | 5.5 | 3 | n/a | 3.25 | 10 | 1/4" x 1/4" | n/a |
| 4" | .625 | 5.5 | 5.5 | 4 | n/a | 4.25 | 10 | 1/4" x 1/4" | n/a |
| 5" | .625 | 7.3 | 7.0 | 5 | n/a | 5.25 | 8 | 1/2" x 1/2" | 1/4" x 1/4" |
| 6" | .625 | 8.2 | 8.2 | 6 | n/a | 6.25 | 10 | 1/2" x 1/2" | 1/4" x 1/4" |
| 7" | .625 | 8.6 | 8.8 | 7 | n/a | 7.25 | 13 | 1/2" x 1/2" | 1/4" x 1/4" |
| 8" | .625 | 9.7 | 10.0 | 8 | n/a | 8.25 | 14 | 1/2" x 1/2" | 1/4" x 1/4" |
SNAP RING
| Dia. | A | B | C | D | E | F | G | Molded Fixed Louver Grid | Inside Grid |
| 3" | 1.25 | 5.5 | 5.5 | 3 | .625 | 3.25 | 10 | 1/4" x 1/4" | n/a |
| 4" | 1.25 | 5.5 | 5.5 | 4 | .625 | 4.25 | 10 | 1/4" x 1/4" | n/a |
| 5" | 1.25 | 7.3 | 7.0 | 5 | .625 | 5.25 | 8 | 1/2" x 1/2" | 1/4" x 1/4" |
| 6" | 1.25 | 8.2 | 8.2 | 6 | .625 | 6.25 | 10 | 1/2" x 1/2" | 1/4" x 1/4" |
| 7" | 1.25 | 8.6 | 8.8 | 7 | .625 | 7.25 | 13 | 1/2" x 1/2" | 1/4" x 1/4" |
| 8" | 1.25 | 9.7 | 10.0 | 8 | .625 | 8.25 | 14 | 1/2" x 1/2" | 1/4" x 1/4" |
| Model | Case # | Package | UPC | Dia. | Length | Color | Each # | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| PFL344 | 110975 | Bulk | 722048109759 | 3" | flush | white | 10975 | 12 | |
| PFL344 | 110976 | Bulk | 722048109766 | 3" | flush | brown | 10976 | 12 | |
| PFL344 | 110751 | Bulk | 722048107519 | 4" | flush | white | 10751 | 12 | |
| PFL344 | 110752 | Bulk | 722048107526 | 4" | flush | brown | 10752 | 12 | |
| PFL344 | 110897 | Bulk | 722048108974 | 5" | flush | white | 10897 | 12 | |
| PFL344 | 111006 | Bulk | 722048110069 | 5" | flush | brown | 11006 | 12 | |
| PFL344 | 110901 | Bulk | 722048109018 | 6" | flush | white | 10901 | 12 | |
| PFL344 | 111010 | Bulk | 722048110106 | 6" | flush | brown | 11010 | 12 | |
| PFL344 | 110905 | Bulk | 722048109056 | 7" | flush | white | 10905 | 12 | |
| PFL344 | 111014 | Bulk | 722048110144 | 7" | flush | brown | 11014 | 12 | |
| PFL344 | 110909 | Bulk | 722048109094 | 8" | flush | white | 10909 | 12 | |
| PFL344 | 111018 | Bulk | 722048110182 | 8" | flush | brown | 11018 | 12 | |
| PFL344 | 110694 | Bulk | 722048106949 | 3" | snap ring | white | 10694 | 12 | |
| PFL344 | 110682 | Bulk | 722048106826 | 3" | snap ring | brown | 10682 | 12 | |
| PFL344 | 110811 | Bulk | 722048108110 | 4" | snap ring | white | 10811 | 12 | |
| PFL344 | 110972 | Bulk | 722048109728 | 4" | snap ring | brown | 10972 | 12 | |
| PFL344 | 110895 | Bulk | 722048108950 | 5" | snap ring | white | 10895 | 12 | |
| PFL344 | 111004 | Bulk | 722048110045 | 5" | snap ring | brown | 11004 | 12 | |
| PFL344 | 110899 | Bulk | 722048108998 | 6" | snap ring | white | 10899 | 12 | |
| PFL344 | 610899 | Skid | 722048108998 | 6" | snap ring | white | 10899 | 480 | |
| PFL344 | 111008 | Bulk | 722048110083 | 6" | snap ring | brown | 11008 | 12 | |
| PFL344 | 111622 | Bulk | 722048116221 | • | 6" | snap ring | white | 11622 | 12 |
| PFL344 | 110903 | Bulk | 722048109032 | 7" | snap ring | white | 10903 | 12 | |
| PFL344 | 111012 | Bulk | 722048110120 | 7" | snap ring | brown | 11012 | 12 | |
| PFL344 | 110907 | Bulk | 722048109070 | 8" | snap ring | white | 10907 | 12 | |
| PFL344 | 111016 | Bulk | 722048110168 | 8" | snap ring | brown | 11016 | 12 | |
| PFL344 | 111599 | Bulk | 722048115996 | • | 3" | 3" male collar | white | 11599 | 12 |
| PFL344 | 111609 | Bulk | 722048116092 | • | 4" | 3" male collar | white | 11609 | 12 |
| PFL344 | 110695 | Bulk | 722048106956 | 3" | 3" male collar | white | 10695 | 12 | |
| PFL344 | 110681 | Bulk | 722048106819 | 3" | 3" male collar | brown | 10681 | 12 | |
| PFL344 | 110812 | Bulk | 722048108127 | 4" | 3" male collar | white | 10812 | 12 | |
| PFL344 | 110519 | Bulk | 722048105195 | 4" | 3" male collar | brown | 10519 | 12 | |
| PFL344 | 111918 | Bulk | 722048119185 | 6" | 4" female tail | white | 11918 | 4 | |
| PFL344 | 111919 | Bulk | 722048119192 | 6" | 4" female tail | brown | 11919 | 4 | |
| PFL344 | 110893 | Bulk | 722048108936 | 3" | 10" female tail | white | 10893 | 12 | |
| PFL344 | 110683 | Bulk | 722048106833 | 3" | 10" female tail | brown | 10683 | 12 | |
| PFL344 | 110813 | Bulk | 722048108134 | 4" | 10" female tail | white | 10813 | 12 | |
| PFL344 | 710813 | Skid | 722048108134 | 4" | 10" female tail | white | 10813 | 288 | |
| PFL344 | 110971 | Bulk | 722048109711 | 4" | 10" female tail | brown | 10971 | 12 | |
| PFL344 | 111251 | Bulk | 722048112513 | 3" | 3' flexible aluminum | white | 11251 | 16 | |
| PFL344 | 110977 | Bulk | 722048109773 | 3" | 3' flexible aluminum | brown | 10977 | 16 | |
| PFL344 | 111249 | Bulk | 722048112490 | 4" | 3' flexible aluminum | white | 11249 | 16 | |
| PFL344 | 110973 | Bulk | 722048109735 | 4" | 3' flexible aluminum | brown | 10973 | 16 | |
