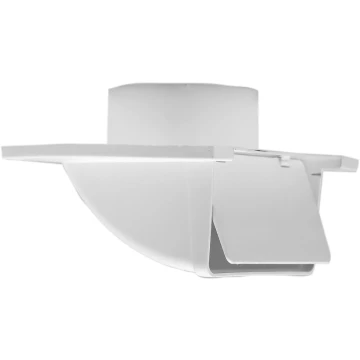

Primex SV Series Eave (Soffit) Vent Exhaust
- One piece design
- Made from UV stabilized polymer resin
- Back draft flapper
FEATURES & BENEFITS
- Low profile, one-piece design is less obtrusive than traditional vents.
- Choose from three different sizes for either 4”, 5” or 6” ducting.
- Can be used in new or retrofit applications.
- No need to penetrate the roof or walls.
- No leaky seams on the vent hood.
- Made from durable, UV-stabilized polymer resin.
- Lightweight and easy to install.
COLOURS
- Snow White (01)
- Taupe (23)
APPLICATIONS
- Dryer Venting
- Heat Recovery Venting (HRV)
- Bathroom Venting
- Intake
- Range Venting
PART NUMBER/SIZING
| Part # | Size | Free Area | Description | Pkg |
| SV4 | 4" Dia. | 12.6 sq. in | Fits 4" diameter duct | 24/box |
| SV5 | 5" Dia. | 13.3 sq. in | Fits 5" diameter duct | 24/box |
| SV6 | 6" Dia. | 28.2 sq. in | Fits 6" diameter duct | 10/box |
| Model | Flapper | Screen | Color | Each | Qty | Case # | Package | Diameter | Tail |
|---|---|---|---|---|---|---|---|---|---|
| SV Exhaust | yes | no | White | SV401 | 24 | 1SV401 | Bulk | 4" | 1.75" |
| SV Exhaust | yes | no | White | SV601 | 10 | 1SV601 | Bulk | 6" | 1.625" |
| SV-SD Exhaust | yes | removable | White | SV401SD | 24 | 1SV401SD | Bulk | 4" | 1.75" |
