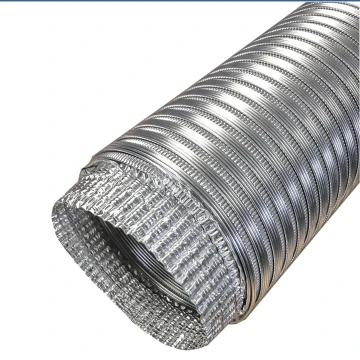

V321 Flexible Pipe Double Crimped
The V321 Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust with one end double crimped for smoother connections.
PRODUCT FEATURES
- One end crimped and one plain end
- 8 ft length ships compressed to 24 in
PRODUCT SPECIFICATIONS
- Thinner wall than V331 PRO
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Non-combustible corrugated aluminum with continuous lockseams
- Class 0 metal duct, non-insulated
PERFORMANCE DATA
- Pressure rating: Maximum positive and negative 3" thru 8" diameters = 6" w.g.
- Maximum velocity: 5,000 FPM Operating Temp. range: -100˚F to +430˚F
- Flame Spread: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each# | Qty | Case# | Package | UPC |
|---|---|---|---|---|---|---|---|
| V321 | 3" | 8' | 10583 | 20 | 011471 | Bulk | 722048105836 |
| V321 | 3" | 8' | 10583 | 400 | 710583 | Skid | 722048105836 |
| V321 | 4" | 8' | 10584 | 12 | 110584 | Bulk | 722048105843 |
| V321 | 4" | 8' | 10584 | 240 | 710584 | Skid | 722048105843 |
| V321 | 5" | 8' | 10585 | 6 | 110585 | Bulk | 722048105850 |
| V321 | 6" | 8' | 10586 | 4 | 010473 | Bulk | 722048105867 |
| V321 | 7" | 8' | 10587 | 4 | 011474 | Bulk | 722048105874 |
| V321 | 8" | 8' | 10588 | 4 | 011475 | Bulk | 722048105881 |
