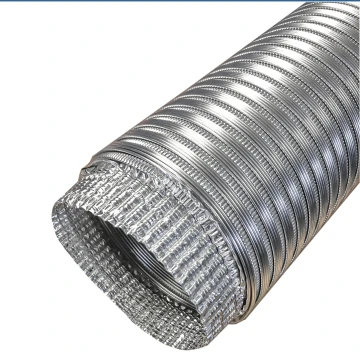

V331 Flexible Pipe PRO Double Crimped
The V3301 PRO Double Crimped Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust.
PRODUCT FEATURES
- One end double crimped for smoother connections and one plain end
- 8 ft length ships compressed to 24 in
PRODUCT SPECIFICATIONS
- Thicker wall than V320
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Class 0 metal duct, non-insulated
- Non-combustible corrugated aluminum with continuous lockseams
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each# | Qty | Part # | Package | UPC |
|---|---|---|---|---|---|---|---|
| V331 | 3" | 8' | 10581 | 20 | 011450 | Bulk | 722048105812 |
| V331 | 3" | 8' | 10581 | 400 | 710581 | Skid | 722048105812 |
| V331 | 4" | 8' | 10582 | 12 | 011452 | Bulk | 722048105829 |
| V331 | 4" | 8' | 10582 | 240 | 710582 | Skid | 722048105829 |
