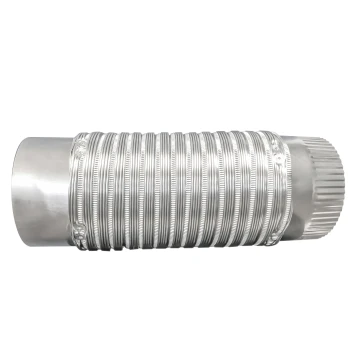

V620 Push Fit Duct
The V620 Push Fit Semi-Rigid Flexible Aluminum Duct is a lightweight duct suitable for clothes dryer venting with aluminum collars on each end.
PRODUCT FEATURES
- Male and female collars overlap for smooth seams
- Class 0 metal duct, non-insulated
PRODUCT SPECIFICATIONS
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Non-combustible corrugated aluminum with continuous lockseams
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Diameter | Length | Each# | Qty | Case# | Packaging | UPC |
|---|---|---|---|---|---|---|---|
| V620 | 4" | 2' | 11564 | 12 | 111564 | Bulk | 722048115644 |
| V620 | 4" | 2' | 11564 | 288 | 611564 | Skid | 722048115644 |
| V620 | 4" | 4' | 10550 | 15 | 110550 | Bulk | 722048105508 |
| V620 | 4" | 8' | 10551 | 12 | 110551 | Bulk | 722048105515 |
