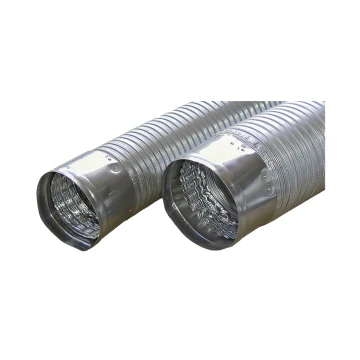

V730 Double Female Flexible Pipe
The V730 Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust with universal female collars on each end.
PRODUCT FEATURES
- Universal female collars
- Class 0 metal duct, non-insulated
PRODUCT SPECIFICATIONS
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Non-combustible corrugated aluminum with continuous lockseams
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Diameter | Length | Clamps | Each# | Qty | Case# | Package | UPC |
|---|---|---|---|---|---|---|---|---|
| V730 | 3" | 8' | n/a | 10300 | 20 | 011454 | Bulk | 722048103009 |
| V730 | 4" | 8' | n/a | 10304 | 12 | 011456 | Bulk | 722048103047 |
| V730 | 3" | 8' | 2 steel screw | 10303 | 20 | 011501 | Bulk | 722048103030 |
| V730 | 4" | 8' | 2 steel screw | 10307 | 12 | 011502 | Bulk | 722048103078 |
