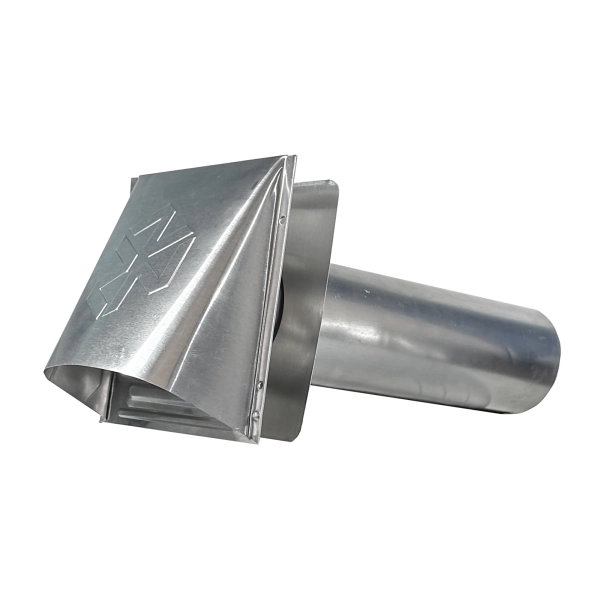

ASM320 Aluminum Standard Mouth Hood
ASM320 is a light weight aluminum standard mouth wall vent hood suitable for general venting.
Product Features
- Flapper with channel for sound dampening foam (foam not included)
- Four mounting holes
- Aluminum trim plate
Product Specifications
- 012 aluminum face
- 010 aluminum tail
- Tailpipe connected with 360˚ mechanical seam
| Dia | Case # | Package | UPC | Labeled | Tail | Mouth | Flapper | Each # | Qty |
|---|---|---|---|---|---|---|---|---|---|
| 3" | 110276 | Bulk | 722048102767 | • | 11.5" | standard | flapper | 10276 | 12 |
| 3" | 110278 | Ind. Box | 722048102781 | • | 11.5" | standard | flapper | 10278 | 4 |
| 4" | 110277 | Bulk | 722048102774 | • | 11.5" | standard | flapper | 10277 | 12 |
| 4" | 110279 | Ind. Box | 722048102798 | • | 11.5" | standard | flapper | 10279 | 4 |
Additional Images
