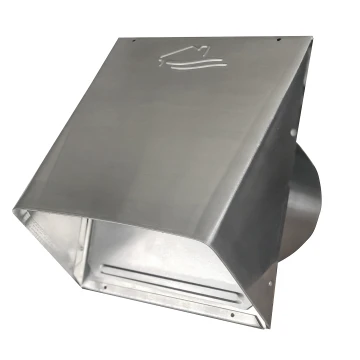

AWM620 Aluminum Heavy Gauge Hood with Flapper
The AWM620 is a heavy duty aluminum wall vent hood.
Product Features
- Flapper:
4" - 7" with channel for sound dampening foam (foam not included)
8" - 12" no channel - 4 mounting holes for secure connections
Product Specifications
- 020 mill finish aluminum
- Riveted construction
- Tailpipe features 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | UPC | Label | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Open Area | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AWM620 | 722048111592 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | 4" | n/a | flapper | n/a | 11159 | 20 | 111159 | Bulk | |
| AWM620 | 722048111455 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" | flapper | n/a | 11145 | 12 | 111145 | Bulk | |
| AWM620 | 722048111479 | 14.5 | 5.25 | 7 | 11.25 | 4 | 18.75 | 4" | 11" | flapper | n/a | 11147 | 12 | 011148 | Bulk | |
| AWM620 | 722048124394 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 5" | n/a | flapper | n/a | 12439 | 12 | 112439 | Bulk | |
| AWM620 | 722048124400 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 5" | 6" | flapper | n/a | 12440 | 12 | 112440 | Bulk | |
| AWM620 | 722048124417 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 5" | 11" | flapper | n/a | 12441 | 6 | 112441 | Bulk | |
| AWM620 | 722048124424 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 6" | n/a | flapper | n/a | 12442 | 12 | 112442 | Bulk | |
| AWM620 | 722048124431 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" | flapper | n/a | 12443 | 12 | 112443 | Bulk | |
| AWM620 | 722048124448 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 6" | 11" | flapper | n/a | 12444 | 6 | 112444 | Bulk | |
| AWM620 | 722048124452 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 7" | n/a | flapper | n/a | 12445 | 12 | 112445 | Bulk | |
| AWM620 | 722048124469 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 7" | 6" | flapper | n/a | 12446 | 12 | 112446 | Bulk | |
| AWM620 | 722048124476 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 7" | 11" | flapper | n/a | 12447 | 6 | 112447 | Bulk | |
| AWM620 | 722048111677 | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | 8" | n/a | flapper | n/a | 11167 | 12 | 111167 | Bulk | |
| AWM620 | 722048110717 | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | 8" | 6" | flapper | n/a | 11071 | 10 | 111071 | Bulk | |
| AWM620 | 722048120105 | • | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | 8" | 6" | flapper | n/a | 12010 | 1 | 012010 | Ind. Box |
| AWM620 | 722048111028 | 16 | 10.25 | 11.25 | 11.25 | 5.5 | 52 | 8" | 11" | flapper | n/a | 11102 | 6 | 111102 | Bulk | |
| AWM620 | 722048111691 | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | 10" | n/a | flapper | n/a | 11169 | 2 | 111169 | Bulk | |
| AWM620 | 722048110724 | 11.75 | 12.25 | 14.25 | 5.5 | 7 | 80 | 10" | 6" | flapper | n/a | 11072 | 2 | 111072 | Bulk | |
| AWM620 | 722048111035 | • | 17.5 | 12.25 | 14.25 | 11.25 | 7 | 80 | 10" | 11" | flapper | n/a | 11103 | 1 | 011103 | Ind Box |
| AWM620 | 722048111714 | 6.25 | 14.25 | 14.25 | n/a | 7 | 99 | 12" | n/a | flapper | n/a | 11171 | 2 | 111171 | Bulk | |
| AWM620 | 722048110731 | 11.75 | 14.25 | 14.25 | 5.5 | 7 | 99 | 12" | 6" | flapper | n/a | 11073 | 2 | 111073 | Bulk | |
| AWM620 | 722048111042 | • | 17.5 | 14.25 | 14.25 | 11.25 | 7 | 99 | 12" | 11" | flapper | n/a | 11104 | 1 | 011104 | Ind Box |
