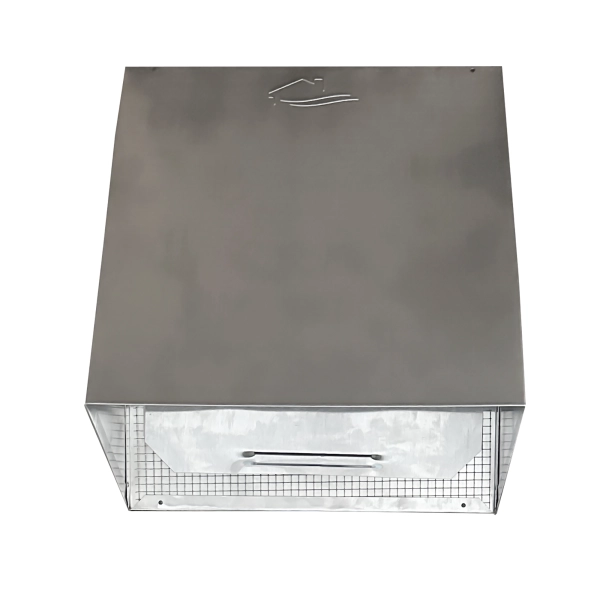

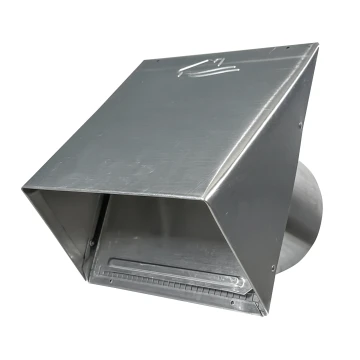

AWM634 Aluminum Heavy Gauge Hood with Spring Flapper and 1/4-in Screen
The AWM634 is a heavy duty aluminum wide mouth wall vent hood with a spring loaded flapper and screen.
Product Features
- Spring flapper with channel for sound dampening foam (foam not included)
- ¼" × ¼" screen mechanically inserted and removable
- 4 mounting holes for secure connections
Product Specifications
- 020 mill finish aluminum
- Riveted construction
- Tailpipe connected with 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | Flapper | Screen | Each # | Qty | Case # | Pkg | UPC | A(in) | B(in) | C(in) | D(in) | E(in) | Open Area | Dia. | Tail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AWM634 | spring flapper | ¼"x¼" removable | 12590 | 20 | 112590 | bulk | 722048125902 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | 4" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12495 | 12 | 112495 | bulk | 722048124950 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12591 | 12 | 112591 | bulk | 7220481125919 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 5" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12493 | 12 | 112493 | bulk | 722048124936 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 5" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12463 | 12 | 112463 | bulk | 722048124639 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 6" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12464 | 12 | 112464 | Bulk | 722048124646 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12593 | 12 | 112593 | bulk | 722048125933 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 7" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12496 | 12 | 112496 | bulk | 722048124967 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 7" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12594 | 12 | 112594 | bulk | 722048125940 | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | 8" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12497 | 10 | 112497 | bulk | 722048124974 | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | 8" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12595 | 2 | 112595 | bulk | 722048125957 | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | 10" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12498 | 2 | 112498 | bulk | 722048124981 | 11.75 | 12.25 | 14.25 | 5.5 | 7 | 80 | 10" | 6" |
| AWM634 | spring flapper | ¼"x¼" removable | 12596 | 2 | 112596 | bulk | 722048125938 | 11.75 | 14.25 | 14.25 | n/a | 7 | 99 | 12" | flush |
| AWM634 | spring flapper | ¼"x¼" removable | 12499 | 2 | 112499 | bulk | 722048124998 | 17.5 | 14.25 | 14.25 | 5.5 | 7 | 99 | 12" | 6" |
