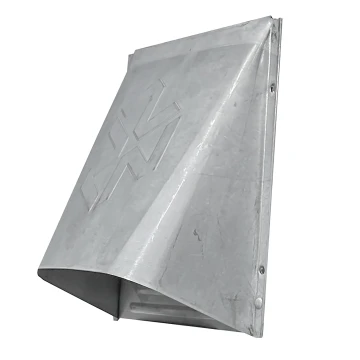

GSM420 Galvanized Standard Mouth P-Tanium™
The GSM420 is a durable galvanized wall vent hood made with P-Tanium™ paintable galvanized steel. The gray matte finish can be left unpainted if desired.
PRODUCT FEATURES
- Model GSM420 has a flapper with channel for sound dampening foam (not included)
- Four mounting holes
- Galvanized trim plate
PRODUCT SPECIFICATIONS
- 30 gauge P-Tanium™ paintable galvanized steel
- Riveted construction
- Standard mouth opening
| Model | Package | UPC | Labeled | A(in) | B(in) | C(in) | D(in) | E(in) | Diameter | Tail Length | Mouth | Flapper | Screen | Each # | Qty | Case # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GSM420 | Bulk | 722048108837 | 14 | 6 | 6 | 11.5 | 2.75 | 3" | 11.5" | Standard | flapper | n/a | 10883 | 12 | 110883 | |
| GSM420 | Bulk | 722048104197 | 2.5 | 6 | 6 | n/a | 2.75 | 4" | flush | Standard | flapper | n/a | 11419 | 24 | 111419 | |
| GSM420 | Bulk | 722048108851 | • | 14 | 6 | 6 | 11.5 | 2.75 | 4" | 11.5 | Standard | flapper | n/a | 10885 | 12 | 110885 |
| GSM420 | Ind. Box | 722048107502 | • | 14 | 6 | 6 | 11.5 | 2.75 | 4" | 11.5" | Standard | flapper | n/a | 10750 | 4 | 110750 |
| P-Tanium™ Trim Plate | Bulk | 722048100565 | 3" | 10056 | 100 | 110056 | ||||||||||
| P-Tanium™ Trim Plate | Bulk | 722048100572 | 4" | 10057 | 100 | 110057 | ||||||||||
