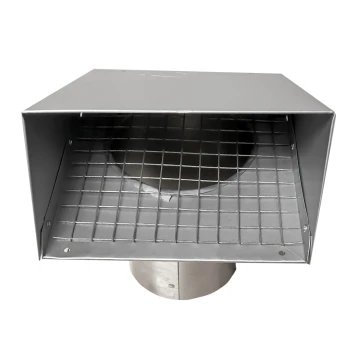

GWM602 Mill Finish Galvanized Heavy Gauge Hood with 1/2-in x 1/2-in Screen
The GWM602 is a heavy duty galvanized wall vent hood.
PRODUCT FEATURES
- ½" × ½" screen mechanically inserted and removablE
- 4 mounting holes for secure connections
PRODUCT SPECIFICATIONS
- 26 gauge galvanized mill finish steel
- Riveted construction
- Tailpipe connected with 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | B (in.) | C (in.) | D (in.) | E (in.) | Open Area | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg | UPC | A (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM602 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" | n/a | ½"x½" removable | 11427 | 12 | 111427 | Bulk | 722048114272 | 8.875 |
