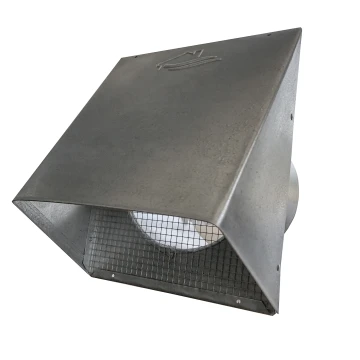

GWM604 Mill Finish Galvanized Heavy Gauge Hood with 1/4-in x 1/4-in Screen
The GWM604 is a heavy duty galvanized wall vent hood.
PRODUCT FEATURES
- ¼" × ¼" screen mechanically inserted and removable
- 4 mounting holes for secure connections
PRODUCT SPECIFICATIONS
- 26 gauge galvanized mill finish steel
- Riveted construction
- Tailpipe features 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | UPC | Label | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Open Area | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM604 | 722048112155 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | 4" | n/a | n/a | ¼"x¼" removable | 11215 | 20 | 111215 | Bulk | |
| GWM604 | 722048110762 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" | n/a | ¼"x¼" removable | 11076 | 12 | 111076 | Bulk | |
| GWM604 | 722048110762 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" | n/a | ¼"x¼" removable | 11076 | 192 | 611076 | Skid | |
| GWM604 | 722048110878 | 14.5 | 5.25 | 7 | 11.25 | 4 | 18.75 | 4" | 11" | n/a | ¼"x¼" removable | 11087 | 12 | 011088 | Bulk | |
| GWM604 | 722048124653 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 5" | n/a | n/a | ¼"x¼" removable | 12465 | 12 | 112465 | Bulk | |
| GWM604 | 722048124660 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 5" | 6" | n/a | ¼"x¼" removable | 12466 | 12 | 112466 | Bulk | |
| GWM604 | 722048124677 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 5" | 11" | n/a | ¼"x¼" removable | 12467 | 6 | 112467 | Bulk | |
| GWM604 | 722048124684 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 6" | n/a | n/a | ¼"x¼" removable | 12468 | 12 | 112468 | Bulk | |
| GWM604 | 722048124691 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" | n/a | ¼"x¼" removable | 12469 | 12 | 112469 | Bulk | |
| GWM604 | 722048124691 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" | n/a | ¼"x¼" removable | 12469 | 120 | 7124696 | Skid | |
| GWM604 | 722048124707 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 6" | 11" | n/a | ¼"x¼" removable | 12470 | 6 | 112470 | Bulk | |
| GWM604 | 722048124714 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 7" | n/a | n/a | ¼"x¼" removable | 12471 | 12 | 112471 | Bulk | |
| GWM604 | 722048124721 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 7" | 6" | n/a | ¼"x¼" removable | 12472 | 12 | 112472 | Bulk | |
| GWM604 | 722048124738 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 7" | 11" | n/a | ¼"x¼" removable | 12473 | 6 | 112473 | Bulk | |
| GWM604 | 722048112230 | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | 8" | n/a | n/a | ¼"x¼" removable | 11223 | 12 | 111223 | Bulk | |
| GWM604 | 722048110823 | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | 8" | 6" | n/a | ¼"x¼" removable | 11082 | 10 | 111082 | Bulk | |
| GWM604 | 722048110946 | 16 | 10.25 | 11.25 | 11.25 | 5.5 | 52 | 8" | 11" | n/a | ¼"x¼" removable | 11094 | 6 | 111094 | Bulk | |
| GWM604 | 722048112254 | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | 10" | n/a | n/a | ¼"x¼" removable | 11225 | 2 | 111225 | Bulk | |
| GWM604 | 722048110830 | 11.75 | 12.25 | 14.25 | 5.5 | 7 | 80 | 10" | 6" | n/a | ¼"x¼" removable | 11083 | 2 | 111083 | Bulk | |
| GWM604 | 722048110953 | • | 17.5 | 12.25 | 14.25 | 11.25 | 7 | 80 | 10" | 11" | n/a | ¼"x¼" removable | 11095 | 1 | 011095 | Ind Box |
| GWM604 | 722048112278 | 6.25 | 14.25 | 14.25 | n/a | 7 | 99 | 12" | n/a | n/a | ¼"x¼" removable | 11227 | 2 | 111227 | Bulk | |
| GWM604 | 722048110847 | 11.75 | 14.25 | 14.25 | 5.5 | 7 | 99 | 12" | 6" | n/a | ¼"x¼" removable | 11084 | 2 | 111084 | Bulk | |
| GWM604 | 722048110960 | • | 17.5 | 14.25 | 14.25 | 11.25 | 7 | 99 | 12" | 11" | n/a | ¼"x¼" removable | 11096 | 1 | 011096 | Ind Box |
