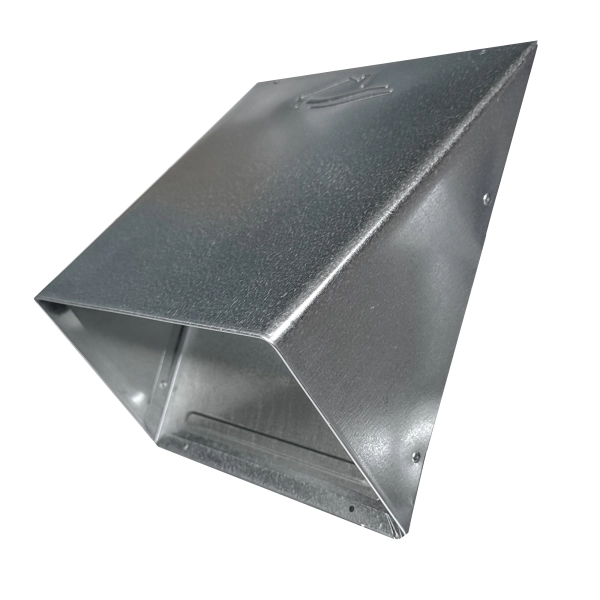

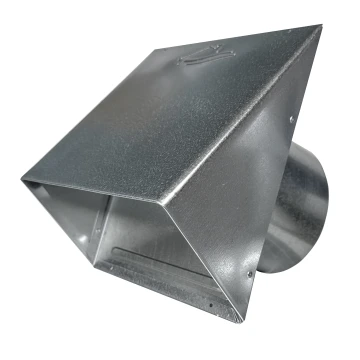

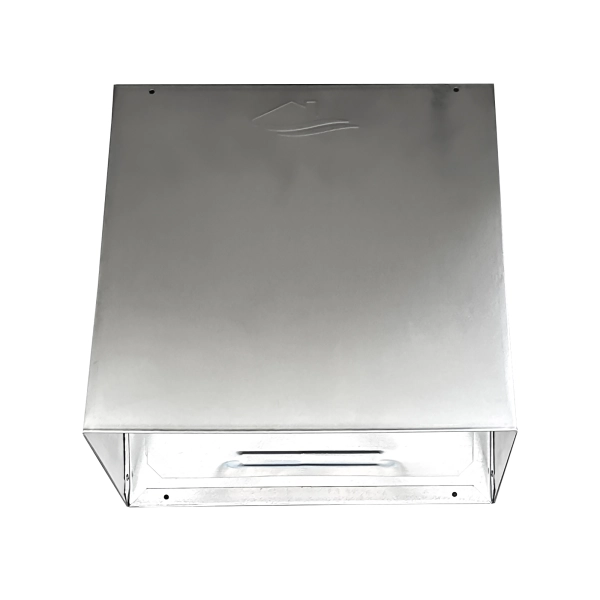

GWM620 Mill Finish Galvanized Heavy Gauge Hood with Flapper
The GWM620 is a heavy duty galvanized wall vent hood with a flapper.
PRODUCT FEATURES
- Flapper 4" - 7" with channel for sound dampening foam (foam not included) 8" - 12" no channel
- 4 mounting holes for secure connections
PRODUCT SPECIFICATIONS
- 26 gauge galvanized mill finish steel
- Riveted construction
- Tailpipe features 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg | UPC | Label | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Open Area |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM620 | 4" | n/a | flapper | n/a | 11201 | 20 | 111201 | Bulk | 722048112018 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | |
| GWM620 | 4" | 6" | flapper | n/a | 11125 | 12 | 111125 | Bulk | 722048111257 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | |
| GWM620 | 4" | 11" | flapper | n/a | 11135 | 12 | 011136 | Bulk | 722048111356 | 14.5 | 5.25 | 7 | 11.25 | 4 | 18.75 | |
| GWM620 | 5" | n/a | flapper | n/a | 12474 | 12 | 112474 | Bulk | 722048124745 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM620 | 5" | 6" | flapper | n/a | 12475 | 12 | 112475 | Bulk | 722048124752 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM620 | 5" | 11" | flapper | n/a | 12476 | 6 | 112476 | Bulk | 722048124769 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM620 | 6" | n/a | flapper | n/a | 12477 | 12 | 112477 | Bulk | 722048124776 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM620 | 6" | 6" | flapper | n/a | 12478 | 12 | 112478 | Bulk | 722048124783 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM620 | 6" | 11" | flapper | n/a | 12479 | 6 | 112479 | Bulk | 722048124790 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM620 | 7" | n/a | flapper | n/a | 12480 | 12 | 112480 | Bulk | 722048124806 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM620 | 7" | 6" | flapper | n/a | 12481 | 12 | 112481 | Bulk | 722048124813 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM620 | 7" | 11" | flapper | n/a | 12482 | 6 | 112482 | Bulk | 722048124820 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM620 | 8" | n/a | flapper | n/a | 11209 | 12 | 111209 | Bulk | 722048112094 | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | |
| GWM620 | 8" | 6" | flapper | n/a | 11132 | 10 | 111132 | Bulk | 722048111325 | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | |
| GWM620 | 8" | 11" | flapper | n/a | 11142 | 6 | 111142 | Bulk | 722048111424 | 16 | 10.25 | 11.25 | 11.25 | 5.5 | 52 | |
| GWM620 | 10" | n/a | flapper | n/a | 11211 | 2 | 111211 | Bulk | 722048112117 | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | |
| GWM620 | 10" | 6" | flapper | n/a | 11133 | 2 | 111133 | Bulk | 722048111332 | 11.75 | 12.25 | 14.25 | 5.5 | 7 | 80 | |
| GWM620 | 10" | 11" | flapper | n/a | 11143 | 1 | 011143 | Ind Box | 722048111431 | • | 17.5 | 12.25 | 14.25 | 11.25 | 7 | 80 |
| GWM620 | 12" | n/a | flapper | n/a | 11213 | 2 | 111213 | Bulk | 722048112131 | 6.25 | 14.25 | 14.25 | n/a | 7 | 99 | |
| GWM620 | 12" | 6" | flapper | n/a | 11134 | 2 | 111134 | Bulk | 722048111349 | 11.75 | 14.25 | 14.25 | 5.5 | 7 | 99 | |
| GWM620 | 12" | 11" | flapper | n/a | 11144 | 1 | 011144 | Ind Box | 722048111448 | • | 17.5 | 14.25 | 14.25 | 11.25 | 7 | 99 |
