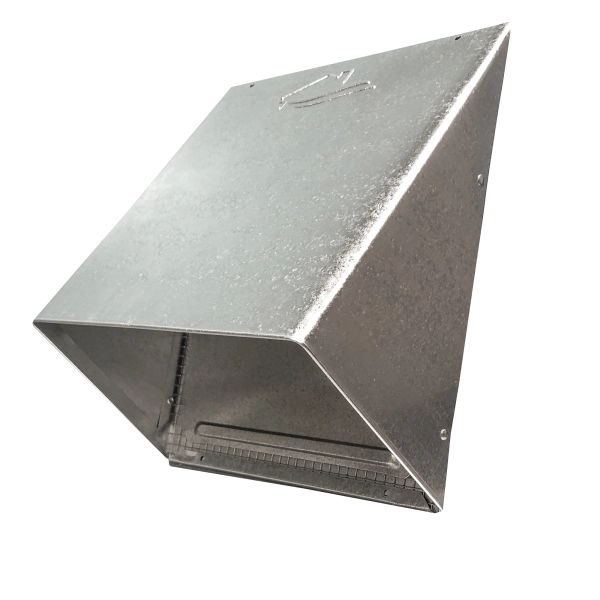

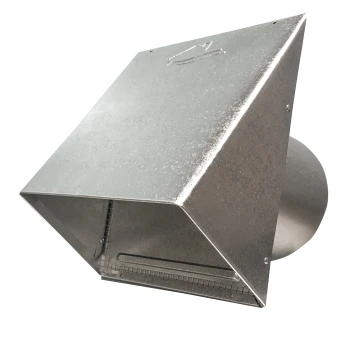

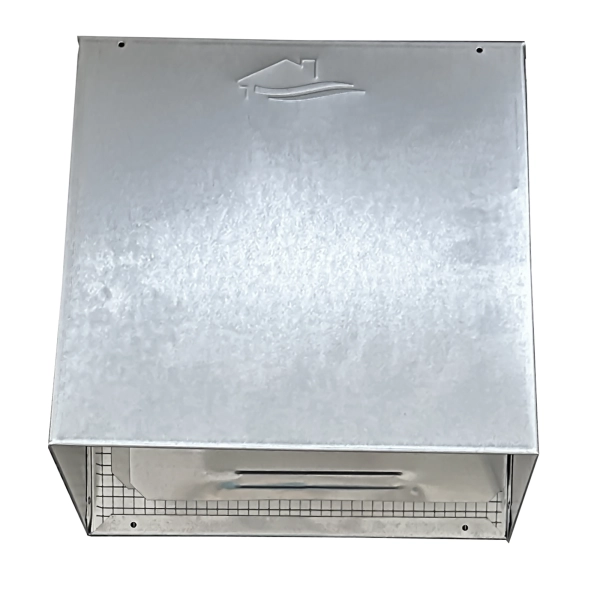

GWM624 Mill Finish Galvanized Heavy Gauge Hood with Flapper and Screen
The GWM624 is a heavy duty galvanized wall vent hood.
PRODUCT FEATURES
- Flapper 4" - 7" with channel for sound dampening foam (foam not included) 8" - 12" no channel
- ¼" × ¼" screen mechanically inserted and removable
- 4 mounting holes for secure connections
PRODUCT SPECIFICATIONS
- 26 gauge galvanized mill finish steel
- Riveted construction
- Tailpipe features 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | UPC | Label | Pkg | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Open Area |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM624 | 4" | n/a | flapper | ¼"x¼" removable | 11229 | 20 | 111229 | 722048112292 | Bulk | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | |
| GWM624 | 4" | 6" | flapper | ¼"x¼" removable | 11033 | 12 | 111033 | 722048110335 | Bulk | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | |
| GWM624 | 4" | 11" | flapper | ¼"x¼" removable | 11022 | 12 | 011023 | 722048110229 | Bulk | 14.5 | 5.25 | 7 | 11.25 | 4 | 18.75 | |
| GWM624 | 5" | n/a | flapper | ¼"x¼" removable | 12483 | 12 | 112483 | 722048124837 | Bulk | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM624 | 5" | 6" | flapper | ¼"x¼" removable | 12484 | 12 | 112484 | 722048124844 | Bulk | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM624 | 5" | 11" | flapper | ¼"x¼" removable | 12485 | 6 | 112485 | 722048124851 | Bulk | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM624 | 6" | n/a | flapper | ¼"x¼" removable | 12486 | 12 | 112486 | 722048124868 | Bulk | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM624 | 6" | 6" | flapper | ¼"x¼" removable | 12487 | 12 | 112487 | 722048124875 | Bulk | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM624 | 6" | 11" | flapper | ¼"x¼" removable | 12488 | 6 | 112488 | 722048124882 | Bulk | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM624 | 7" | n/a | flapper | ¼"x¼" removable | 12489 | 12 | 112489 | 722048124899 | Bulk | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | |
| GWM624 | 7" | 6" | flapper | ¼"x¼" removable | 12490 | 12 | 112490 | 722048124905 | Bulk | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | |
| GWM624 | 7" | 11" | flapper | ¼"x¼" removable | 12491 | 6 | 112491 | 722048124912 | Bulk | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | |
| GWM624 | 8" | n/a | flapper | ¼"x¼" removable | 11237 | 12 | 111237 | 722048112377 | Bulk | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | |
| GWM624 | 8" | 6" | flapper | ¼"x¼" removable | 11039 | 10 | 111039 | 722048110397 | Bulk | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | |
| GWM624 | 8" | 11" | flapper | ¼"x¼" removable | 11028 | 6 | 111028 | 722048110281 | Bulk | 16 | 10.25 | 11.25 | 11.25 | 5.5 | 52 | |
| GWM624 | 10" | n/a | flapper | ¼"x¼" removable | 11239 | 2 | 111239 | 722048112391 | Bulk | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | |
| GWM624 | 10" | 6" | flapper | ¼"x¼" removable | 11040 | 2 | 111040 | 722048110403 | Bulk | 11.75 | 12.25 | 14.25 | 5.5 | 7 | 80 | |
| GWM624 | 10" | 11" | flapper | ¼"x¼" removable | 11029 | 1 | 011029 | 722048110298 | • | Ind Box | 17.5 | 12.25 | 14.25 | 11.25 | 7 | 80 |
| GWM624 | 12" | n/a | flapper | ¼"x¼" removable | 11241 | 2 | 111241 | 722048112414 | Bulk | 6.25 | 14.25 | 14.25 | n/a | 7 | 99 | |
| GWM624 | 12" | 6" | flapper | ¼"x¼" removable | 11041 | 2 | 111041 | 722048110410 | Bulk | 11.75 | 14.25 | 14.25 | 5.5 | 7 | 99 | |
| GWM624 | 12" | 11" | flapper | ¼"x¼" removable | 11030 | 1 | 011030 | 722048110298 | • | Ind Box | 17.5 | 14.25 | 14.25 | 11.25 | 7 | 99 |
