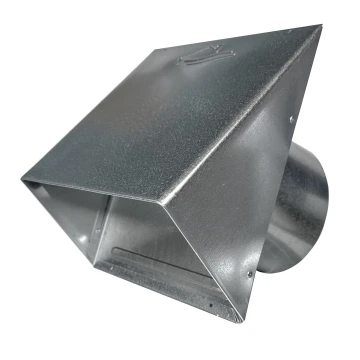

GWM630 Mill Finish Galvanized Heavy Gauge Hood with Spring Flapper
The GWM630 is a heavy duty galvanized wall vent hood with a spring loaded flapper.
PRODUCT FEATURES
- Spring flapper 4" - 7" with channel for sound dampening foam (foam not included)
- 4 mounting holes for secure connections
PRODUCT SPECIFICATIONS
- 26 gauge galvanized mill finish steel
- Riveted construction
- Tailpipe features 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Dia. | C (in.) | D (in.) | E (in.) | Open Area | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg | UPC | A (in.) | B (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 7 | 11.25 | 4 | 18.75 | 11" | spring flapper | n/a | 11643 | 15 | 111643 | Bulk | 722048116436 | 14.5 | 5.25 |
| 6" | 10 | 11.25 | 5.375 | 40 | 11" | spring flapper | n/a | 12492 | 6 | 112492 | Bulk | 722048124929 | 15.75 | 8.25 |
