Periscope 29-50-in

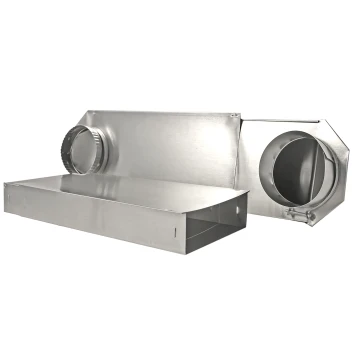

The 29-50” Periscope is a rigid aluminum clothes dryer duct which telescopes to the top of most dryers.
PRODUCT FEATURES
- Reaches the top of most dryers
- Four piece assembly

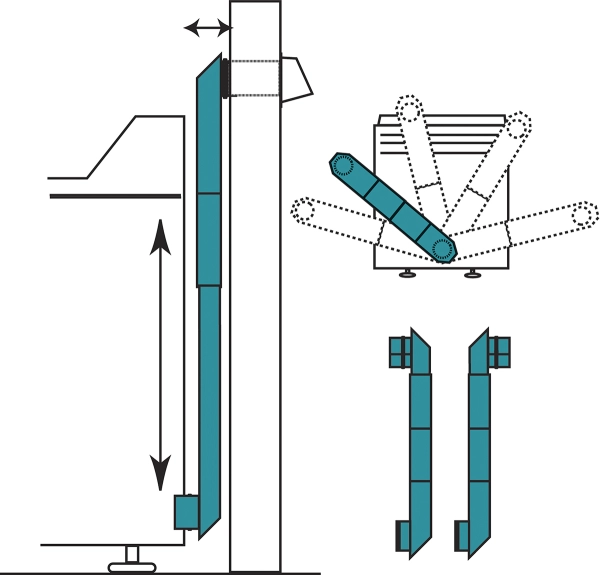

- Sections are reversible, for airflow same or opposite
- Smooth interior decreases air friction
PRODUCT SPECIFICATIONS
- 2” x 6” rigid aluminum
- 4” Draw band swiveling female collar
- 4” Crimped swiveling snap-lock male fitting
RECOMMENDATION
- The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
- Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.”
PERFORMANCE DATA AND AIRFLOW
- Pressure Rating: Positive: 6” WC max Negative: 6” WC max Maximum velocity: 5,000 FPM Operating Temp. Range: -100˚F to+ 430˚F
- Flame Spread: 0
- Smoke Developed: 0
INSTALLATION: (Installation instructions are included inside each carton.)
Periscopes provide nearly the same airflow properties as one semi-rigid metal flexible pipe with two Close Elbows®.
| Model | Length | Each# | Qty | Part # | Package | UPC | Label |
|---|---|---|---|---|---|---|---|
| Persicope | 29-50" | 10174 | 4 | 110174 | Display Box | 722048101746 | • |
| Persicope | 29-50" | 10174 | 120 | 710174 | Skid | 722048101747 | • |
| Persicope | 29-50" | 10117 | 4 | 110117 | Ind. box | 772048101173 | • |
| Persicope | 29-50" | 10117 | 1 | 710117 | Ind. box | 772048101174 | • |
