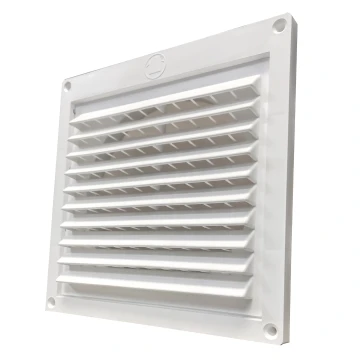

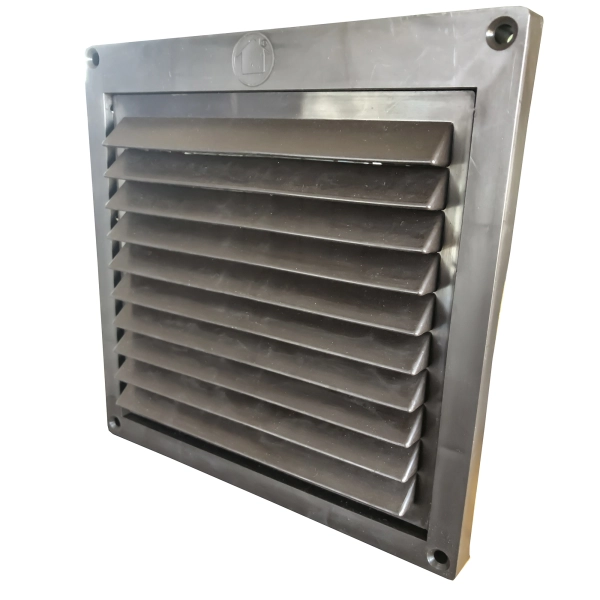

PFL342 Plastic Fixed Louver Mini Louver Hood with 1/2-in Grid
The PFL342 Mini Louver Hood features a plastic 1/2" x 1/2" molded fixed louver grid which provides protection against pests.
PRODUCT SPECIFICATIONS
- polypropylene molded plastic
- 4 mounting holes
- 1/2" x 1/2" molded fixed louver grid
- Available flush and with snap ring
RECOMMENDATION
- The PFL342 is good for eave and side wall venting.
- The PFL342 can be used as intake or exhaust.
- Not recommended for dryer venting.
FLUSH
| Diameter | A | B | C | D | E | F | G | Molded Fixed Louvre Grid |
| 5" | .625 | 7.3 | 7.0 | 5 | n/a | 5 | 8 | 1/2" x 1/2" |
| 6" | .625 | 8.2 | 8.2 | 6 | n/a | 6 | 10 | 1/2" x 1/2" |
| 7" | .625 | 8.6 | 8.8 | 7 | n/a | 7 | 13 | 1/2" x 1/2" |
| 8" | .625 | 9.7 | 10.0 | 8 | n/a | 8 | 14 | 1/2" x 1/2" |
SNAP RING
| Diameter | A | B | C | D | E | F | G | Molded Fixed Louvre Grid |
| 5" | 1.25 | 7.3 | 7.0 | 5 | n/a | 5 | 8 | 1/2" x 1/2" |
| 6" | 1.25 | 8.2 | 8.2 | 6 | n/a | 6 | 10 | 1/2" x 1/2" |
| 7" | 1.25 | 8.6 | 8.8 | 7 | n/a | 7 | 13 | 1/2" x 1/2" |
| 8" | 1.25 | 9.7 | 10.0 | 8 | n/a | 8 | 14 | 1/2" x 1/2" |
| Model | Dia. | Tail | Color | Each # | Qty | Case # | Package | UPC |
|---|---|---|---|---|---|---|---|---|
| PFL342 | 5" | flush | White | 10896 | 12 | 110896 | Bulk | 722048108967 |
| PFL342 | 5" | flush | Brown | 11005 | 12 | 111005 | Bulk | 722048110052 |
| PFL342 | 6" | flush | White | 10900 | 12 | 110900 | Bulk | 722048109001 |
| PFL342 | 6" | flush | Brown | 11503 | 12 | 111503 | Bulk | 722048115033 |
| PFL342 | 7" | flush | White | 10904 | 12 | 110904 | Bulk | 722048109049 |
| PFL342 | 7" | flush | Brown | 11013 | 12 | 111013 | Bulk | 722048110137 |
| PFL342 | 8" | flush | White | 10908 | 12 | 110908 | Bulk | 722048109087 |
| PFL342 | 8" | flush | Brown | 11017 | 12 | 111017 | Bulk | 722048110175 |
| PFL342 | 5" | snap ring | White | 10894 | 12 | 110894 | Bulk | 722048108943 |
| PFL342 | 5" | snap ring | Brown | 11003 | 12 | 111003 | Bulk | 722048110038 |
| PFL342 | 6" | snap ring | White | 10898 | 12 | 110898 | Bulk | 722048108981 |
| PFL342 | 6" | snap ring | Brown | 11007 | 12 | 111007 | Bulk | 722048110076 |
| PFL342 | 7" | snap ring | White | 10902 | 12 | 110902 | Bulk | 722048109025 |
| PFL342 | 7" | snap ring | Brown | 11011 | 12 | 111011 | Bulk | 722048110113 |
| PFL342 | 8" | snap ring | White | 10906 | 12 | 110906 | Bulk | 722048109063 |
| PFL342 | 8" | snap ring | Brown | 11015 | 12 | 111015 | Bulk | 722048110151 |
