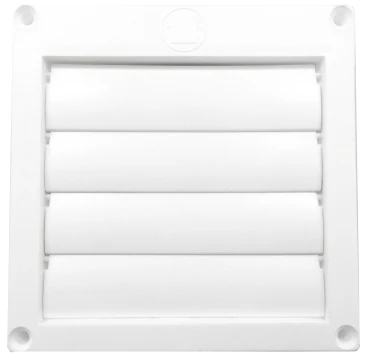

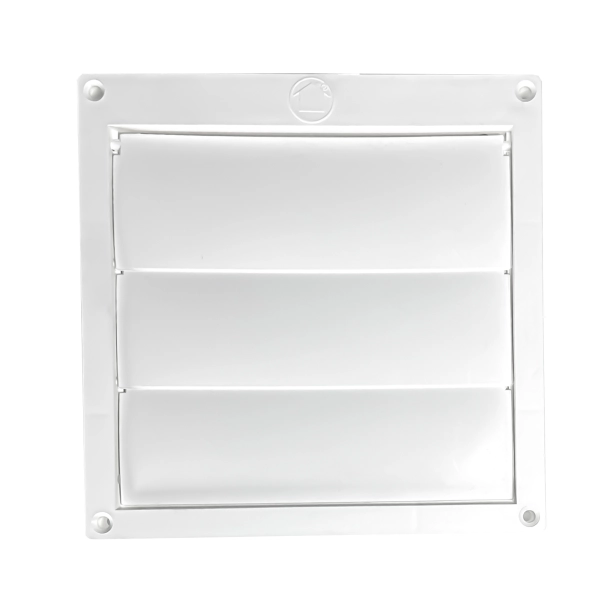

PML320 Louvered Hood
The PML320 Louvered Hood features freeswinging louvers.
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- 4 mounting holes

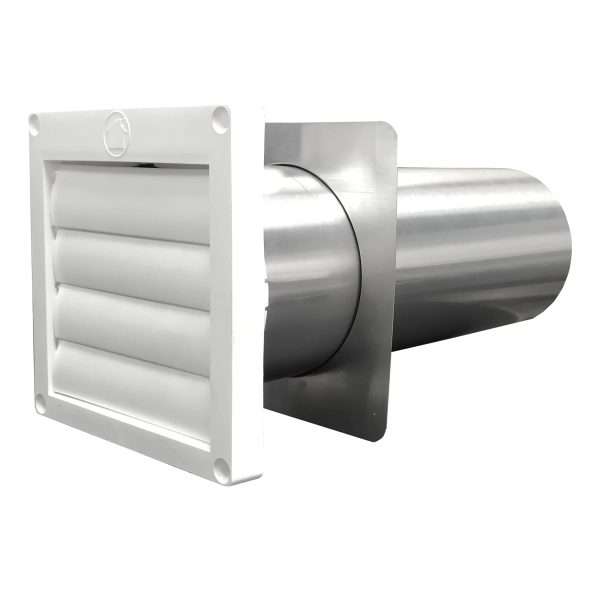

- Hoods with 11" tails are fully assembled and include aluminum trim plates
RECOMMENDATION
The PML320 is good for side wall venting. Suitable for dryer venting.
FLUSH
| Diameter | A | B | C | D | G |
| 3" | .625 | 5.6 | 5.5 | 3 | 4 |
| 4" | .625 | 5.6 | 5.5 | 4 | 4 |
| 5" | .625 | 7.3 | 7.0 | 5 | 2 |
| 6" | .625 | 8.2 | 8.2 | 6 | 3 |
| 7" | .625 | 8.6 | 8.8 | 7 | 3 |
| 8" | .625 | 9.7 | 10.0 | 8 | 3 |
SNAP RING
| Diameter | A | B | C | D | E | F | G |
| 3" | 1.25 | 5.5 | 5.5 | 3 | .625 | 3.25 | 4 |
| 4" | 1.25 | 5.5 | 5.5 | 4 | .625 | 4.25 | 4 |
| 5" | 1.25 | 7.3 | 7.0 | 5 | .625 | 5.25 | 2 |
| 6" | 1.25 | 8.2 | 8.2 | 6 | .625 | 6.25 | 3 |
| 7" | 1.25 | 8.6 | 8.8 | 7 | .625 | 7.25 | 3 |
| " | 1.25 | 9.7 | 10.0 | 8 | .625 | 8.25 | 3 |
| Model | Each# | Qty | Case # | Pkg | UPC | Upc Labeled | Dia | Tail | Color | # Louvers |
|---|---|---|---|---|---|---|---|---|---|---|
| PML320 | 11149 | 24 | 111149 | Bulk | 722048111493 | 3" | flush | white | 4 | |
| PML320 | 11151 | 24 | 111151 | Bulk | 722048111516 | 3" | flush | brown | 4 | |
| PML320 | 11153 | 24 | 111153 | Bulk | 722048111530 | 4" | flush | wWhite | 4 | |
| PML320 | 11155 | 24 | 111155 | Bulk | 722048111554 | 4" | flush | brown | 4 | |
| PML320 | 10832 | 12 | 110832 | Bulk | 722048108325 | 5" | flush | white | 2 | |
| PML320 | 10836 | 12 | 110836 | Bulk | 722048108363 | 5" | flush | Brown | 2 | |
| PML320 | 10840 | 12 | 110840 | Bulk | 722048108400 | 6" | flush | White | 3 | |
| PML320 | 12310 | 12 | 112310 | Bulk | 722048123106 | • | 6" | flush | White | 3 |
| PML320 | 10844 | 12 | 110844 | Bulk | 722048108448 | 6" | flush | Brown | 3 | |
| PML320 | 12311 | 12 | 112311 | Bulk | 722048123113 | • | 6" | flush | Brown | 3 |
| PML320 | 10848 | 12 | 110848 | Bulk | 722048108486 | 7" | flush | White | 3 | |
| PML320 | 10852 | 12 | 110852 | Bulk | 722048108523 | 7" | flush | Brown | 3 | |
| PML320 | 10856 | 12 | 110856 | Bulk | 722048108561 | 8" | flush | White | 3 | |
| PML320 | 10860 | 12 | 110860 | Bulk | 722048108608 | 8" | flush | Brown | 3 | |
| PML320 | 10749 | 12 | 110749 | Bulk | 722048107496 | 3" | snap ring | White | 4 | |
| PML320 | 10872 | 12 | 110872 | Bulk | 722048108721 | 3" | snap ring | Brown | 4 | |
| PML320 | 11424 | 12 | 111424 | Display Card | 722048114241 | • | 4" | snap ring | White | 4 |
| PML320 | 10286 | 12 | 110286 | Bulk | 722048102866 | 4" | snap ring | White | 4 | |
| PML320 | 10286 | 1152 | 710286 | Skid | 722048102866 | 4" | snap ring | White | 4 | |
| PML320 | 11545 | 12 | 111545 | Display Card | 722048115453 | • | 4" | snap ring | Brown | 4 |
| PML320 | 10287 | 12 | 110287 | Bulk | 722048102873 | 4" | snap ring | Brown | 4 | |
| PML320 | 10830 | 12 | 110830 | Bulk | 722048108301 | 5" | snap ring | White | 2 | |
| PML320 | 10834 | 12 | 110834 | Bulk | 722048108349 | 5" | snap ring | Brown | 2 | |
| PML320 | 10838 | 12 | 110838 | Bulk | 722048108387 | 6" | snap ring | White | 3 | |
| PML320 | 10842 | 12 | 110842 | Bulk | 722048108424 | 6" | snap ring | Brown | 3 | |
| PML320 | 10846 | 12 | 110846 | Bulk | 722048108462 | 7" | snap ring | White | 3 | |
| PML320 | 10850 | 12 | 110850 | Bulk | 722048108509 | 7" | snap ring | Brown | 3 | |
| PML320 | 10854 | 12 | 110854 | Bulk | 722048108547 | 8" | snap ring | White | 3 | |
| PML320 | 10858 | 12 | 110858 | Bulk | 722048108585 | 8" | snap ring | Brown | 3 | |
| PML320 | 10280 | 12 | 110280 | Bulk | 722048102804 | 3" | 11" | White | 4 | |
| PML320 | 10334 | 4 | 110334 | Individual Box | 722048103344 | • | 3" | 11" | White | 4 |
| PML320 | 10281 | 12 | 110281 | Bulk | 722048102811 | • | 3" | 11" | Brown | 4 |
| PML320 | 11412 | 12 | 111412 | Display Card | 722048114128 | • | 4" | 11" | White | 4 |
| PML320 | 10282 | 12 | 110282 | Bulk | 722048102828 | • | 4" | 11" | White | 4 |
| PML320 | 10336 | 4 | 110336 | Individual Box | 722048103368 | • | 4" | 11" | White | 4 |
| PML320 | 11414 | 12 | 111414 | Display Card | 722048114142 | • | 4" | 11" | Brown | 4 |
| PML320 | 10283 | 12 | 110283 | Bulk | 722048102835 | • | 4" | 11" | Brown | 4 |
| PML320 | 10338 | 4 | 110338 | Individual Box | 722048103382 | • | 4" | 11" | Brown | 4 |
