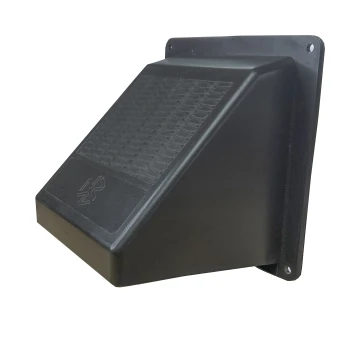

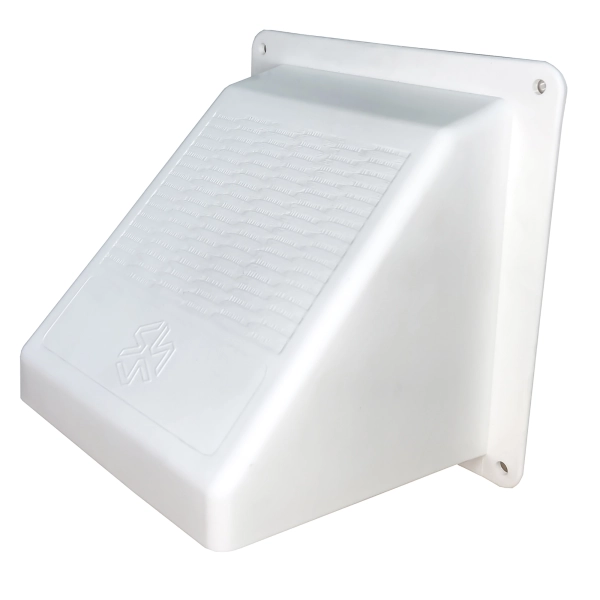

PWM620 Plastic Wide Mouth Hood
PWM620 is a plastic wide mouth hood with a free-swinging back draft flapper. The wide mouth hood is suitable for dryer venting.
PRODUCT FEATURES
- Free swinging back draft flapper
- 4 mounting holes

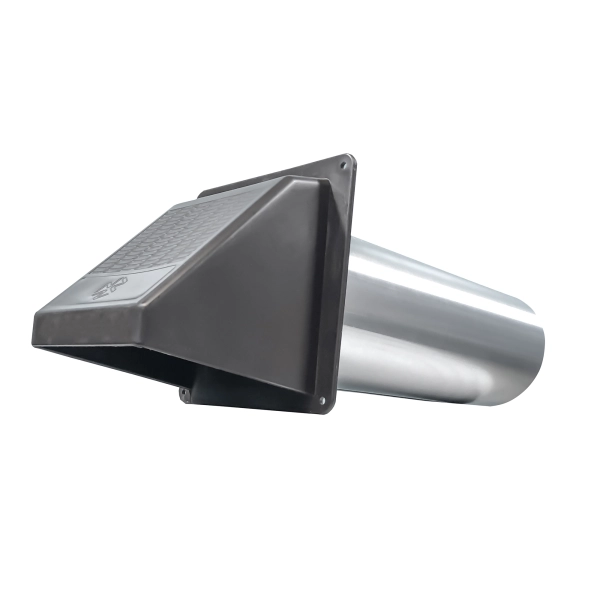

- Aluminum trim plate included with 11" tails
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- Wide mouth opening exceeds diameter
| Model | UPC | Label | A(in) | B(in) | C(in) | D(in) | E(in) | Open Area | Dia. | Tail Length | Color | Flapper | Each # | Qty | Case # | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PWM620 | 722048107663 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 19.18 | 4" | flush | white | flapper | 10766 | 8 | 110766 | Bulk | |
| PWM620 | 722048107663 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 19.18 | 4" | flush | white | flapper | 10766 | 392 | 010768 | Skid (gaylord) | |
| PWM620 | 722048107670 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 19.18 | 4" | flush | brown | flapper | 10767 | 8 | 110767 | Bulk | |
| PWM620 | 722048107670 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 19.18 | 4" | flush | brown | flapper | 10767 | 392 | 10769 | Skid (gaylord) | |
| PWM620 | 722048113732 | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 3" | 1/2" ring | white | flapper | 11373 | 8 | 111373 | Bulk | |
| PWM620 | 722048113749 | • | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 3" | 1/2" ring | brown | flapper | 11374 | 8 | 111374 | Bulk |
| PWM620 | 722048101197 | • | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 4" | 1/2" ring | white | flapper | 10119 | 8 | 110119 | Bulk |
| PWM620 | 722048101197 | • | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 4" | 1/2" ring | white | flapper | 10119 | 336 | 010723 | Skid (gaylord) |
| PWM620 | 722048102859 | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 4" | 1/2" ring | brown | flapper | 10285 | 8 | 110285 | Bulk | |
| PWM620 | 722048102859 | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 4" | 1/2" ring | brown | flapper | 10285 | 336 | 10724 | Skid (gaylord) | |
| PWM620 | 722048112438 | • | 5 | 5.75 | 5.75 | .5 | 4.5 | 19.18 | 3" | 11" | white | flapper | 11243 | 8 | 111243 | Bulk |
| PWM620 | 722048113787 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 3" | 11" | brown | flapper | 11378 | 8 | 111378 | Bulk |
| PWM620 | 722048101791 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | white | flapper | 10179 | 6 | 10179 | Display Tray |
| PWM620 | 722048101647 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | white | flapper | 10164 | 8 | 110164 | Display Card |
| PWM620 | 722048101135 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | white | flapper | 10113 | 8 | 110113 | Bulk |
| PWM620 | 722048101135 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | white | flapper | 10113 | 192 | 710113 | Skid |
| PWM620 | 722048103306 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | white | flapper | 10330 | 4 | 110330 | Ind. Box |
| PWM620 | 722048104105 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | brown | flapper | 10410 | 8 | 110410 | Display Card |
| PWM620 | 722048101777 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | brown | flapper | 10177 | 6 | 110177 | Display Tray |
| PWM620 | 722048102842 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | brown | flapper | 10284 | 8 | 110284 | Bulk |
| PWM620 | 722048103320 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 19.18 | 4" | 11" | brown | flapper | 10332 | 4 | 110332 | Ind. Box |
| PWM620 replacement flapper | 722048127012 | 4.125 | 4.125 | .458 | n/a | n/a | n/a | n/a | n/a | white | 12701 | 100 | 112701 | Bulk | ||
| PWM620 replacement flapper | 722048127036 | 4.125 | 4.125 | .458 | n/a | n/a | n/a | n/a | n/a | brown | 12703 | 100 | 112703 | Bulk | ||
