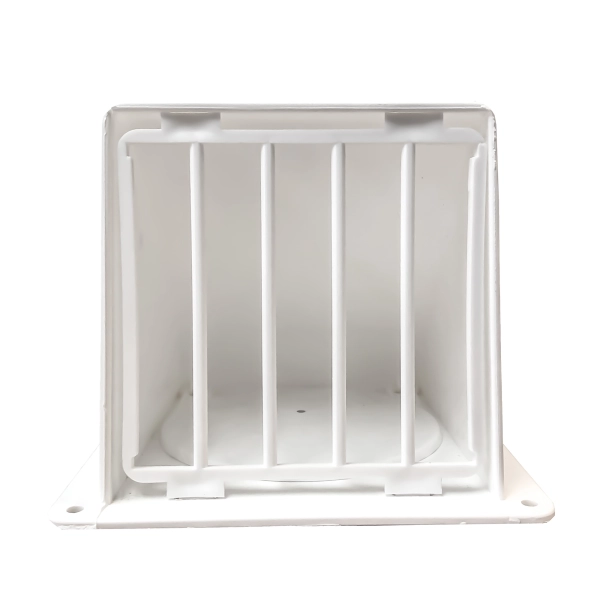

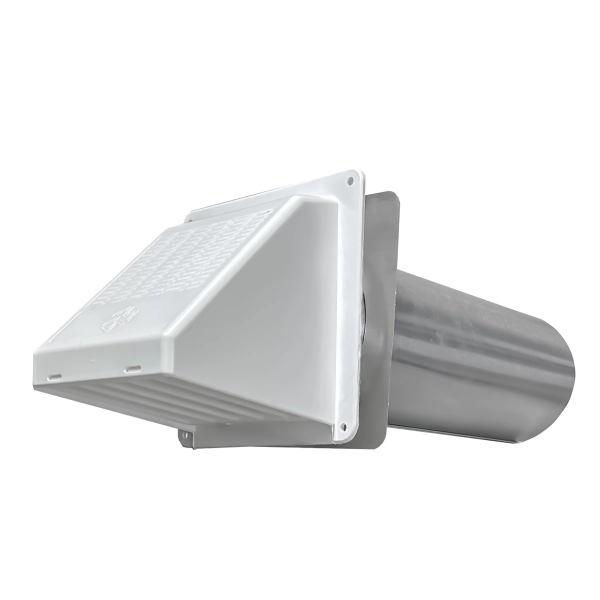

PWM621 Plastic Wide Mouth Hood with Snap-In Vertical Guard
PWM621 is a plastic wide mouth hood with a snap-in clog resistant vertical guard. The wide mouth hood is suitable for dryer venting, and the vertical guard is easily removed for cleaning.
Check your local building codes. Remove guard if using for dryer venting. Check guard frequently for blockages.
PRODUCT FEATURES
- Free swinging back draft flapper

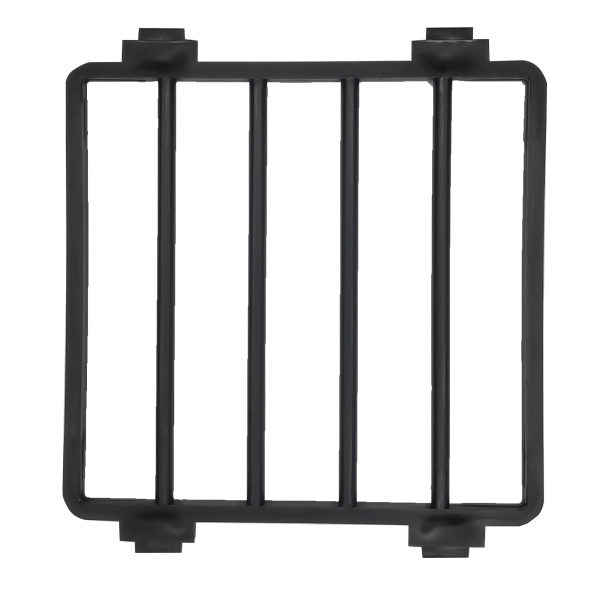

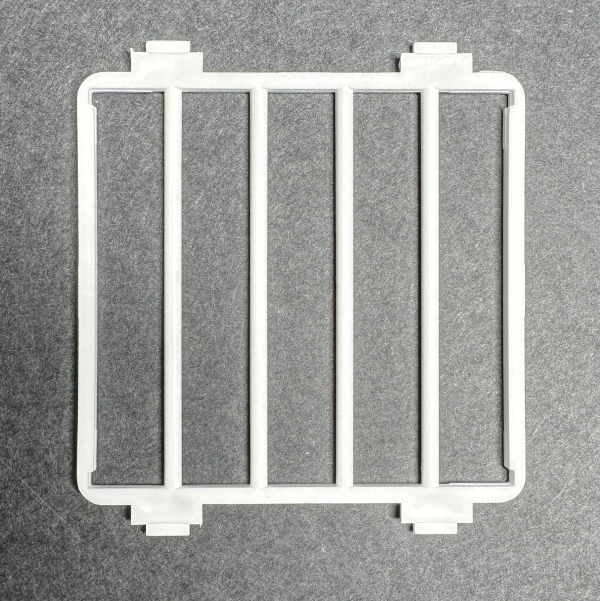

- Snap-in clog resistant vertical guard with bars 3/4" apart, removable
- 4 mounting holes
- Aluminum trim plate included with 11" tails
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- Wide mouth opening exceeds diameter
| Model | Labeled | A(in) | B(in | C(in) | D(in) | E(in) | Open Area | Diameter | Tail length | color | each # | Qty | Case # | Package | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PWM621 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 13.63 | 4" | flush | white | 12570 | 8 | 112570 | bulk | 722048125704 | |
| PWM621 | 4.5 | 5.75 | 5.75 | 0 | 4.5 | 13.63 | 4" | flush | brown | 12571 | 8 | 112571 | bulk | 722048125711 | |
| PWM621 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 13.63 | 4" | 11" | white | 12574 | 8 | 112574 | bulk | 722048125742 |
| PWM621 | • | 15.75 | 5.75 | 5.75 | 11 | 4.5 | 13.63 | 4" | 11" | brown | 12575 | 8 | 112575 | bulk | 722048125759 |
| replacement guard | 4.5 | 5.75 | 5.75 | n/a | n/a | n/a | na | white | 12576 | 25 | 112576 | bulk | 722048112566 | ||
| replacement guard | 4.5 | 5.75 | 5.75 | n/a | n/a | n/a | na | brown | 12577 | 25 | 112577 | bulk | 722048125773 | ||
| replacement flapper | 4.125 | 4.125 | 4.125 | n/a | n/a | n/a | na | white | 12701 | 100 | 112701 | bulk | 722048127012 | ||
| replacement flapper | 4.125 | 4.125 | 4.125 | n/a | n/a | n/a | na | brown | 12703 | 100 | 112703 | bulk | 722048127036 | ||
