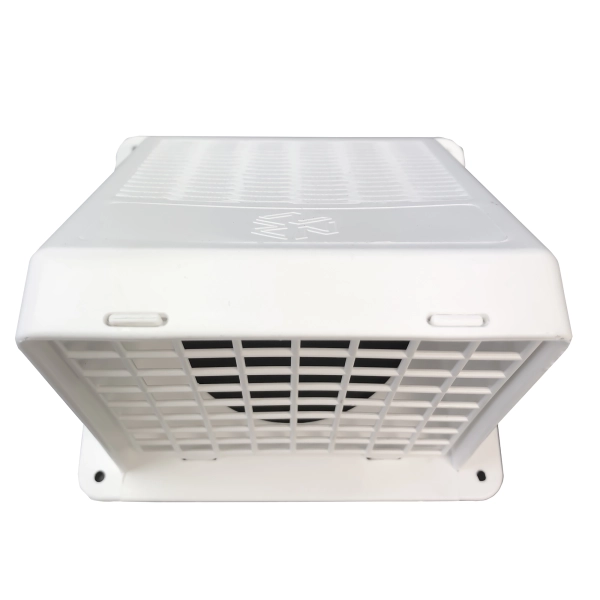

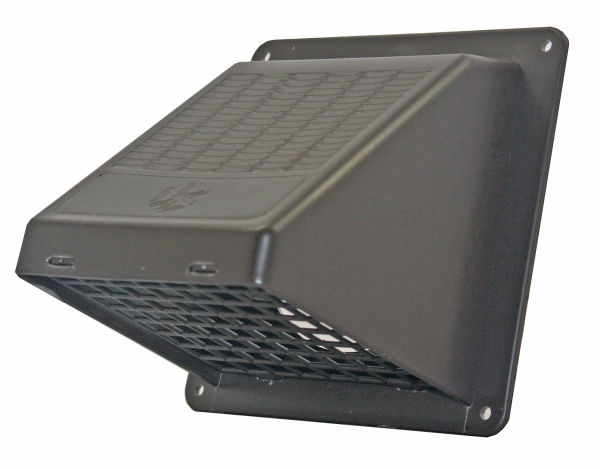

PWM622 Plastic Wide Mouth Hood with Snap-In 1/2-in Grid
PWM622 is a plastic wide mouth hood with a snap-in 1/2" grid. The wide mouth hood is suitable for dryer venting, and the grid is easily removed for cleaning. Check your local building codes.
Remove grid if using for dryer venting. Check grid frequently for blockages.
PRODUCT FEATURES
- Free swinging back draft flapper
- Snap-in 1/2" grid, removable
- 4 mouthing holes

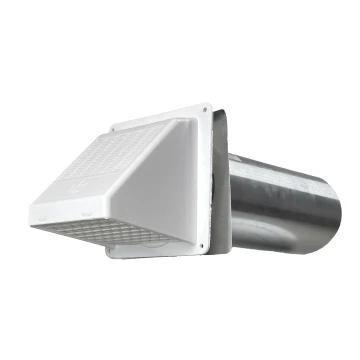

- Aluminum trim plate included with 11" tails
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- Wide mouth opening exceeds diameter
| Model | E(in) | Open Area | Dia. | Tail Length | Color | Flapper | Screen | Each # | Qty | Case # | Package | UPC | Label | A(in) | B(in) | C(in) | D(in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PWM622 | 4.5 | 16.36 | 4" | flush | white | flapper | removable ½ " x ½ " | 11391 | 8 | 111391 | Bulk | 722048113916 | 4.5 | 5.75 | 5.75 | 0 | |
| PWM622 | 4.5 | 16.36 | 4" | flush | white | flapper | removable ½ " x ½ " | 11391 | 560 | 611391 | Skid | 722048113923 | 4.5 | 5.75 | 5.75 | 0 | |
| PWM622 | 4.5 | 16.36 | 4" | flush | brown | flapper | removable ½ " x ½ " | 11392 | 8 | 111392 | Bulk | 722048113923 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.5 | 16.36 | 4" | flush | brown | flapper | removable ½ " x ½ " | 11392 | 392 | 011808 | Skid(Gaylord) | 722048113923 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.5 | 16.36 | 3" | 1/2" ring | white | flapper | removable ½ " x ½ " | 11375 | 8 | 111375 | Bulk | 722048113756 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.5 | 16.36 | 3" | 1/2" ring | brown | flapper | removable ½ " x ½ " | 11376 | 8 | 111376 | Bulk | 722048113763 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.52 | 16.36 | 4" | 1/2" ring | white | flapper | removable ½ " x ½ " | 11732 | 8 | 111732 | Bulk | 722048117327 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.52 | 16.36 | 4" | 1/2" ring | white | flapper | removable ½ " x ½ " | 11732 | 560 | 611732 | Skid | 722048117327 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.52 | 16.36 | 4" | 1/2" ring | brown | flapper | removable ½ " x ½ " | 11733 | 8 | 111733 | Bulk | 722048117334 | 5 | 5.75 | 5.75 | .5 | |
| PWM622 | 4.52 | 16.36 | 3" | 11" | white | flapper | removable ½ " x ½ " | 11365 | 8 | 111365 | Bulk | 722048113657 | • | 15.75 | 5.75 | 5.75 | 11 |
| PWM622 | 4.52 | 16.36 | 3" | 11" | brown | flapper | removable ½ " x ½ " | 11368 | 8 | 111368 | Bulk | 722048113688 | • | 15.75 | 5.75 | 5.75 | 11 |
| PWM622 | 4.52 | 16.36 | 4" | 11" | white | flapper | removable ½ " x ½ " | 11381 | 8 | 111381 | Bulk | 722048113817 | • | 15.75 | 5.75 | 5.75 | 11 |
| PWM622 | 4.52 | 16.36 | 4" | 11" | white | flapper | removable ½ " x ½ " | 11381 | 192 | 711381 | Skid | 722048113817 | • | 15.75 | 5.75 | 5.75 | 11 |
| PWM622 | 4.52 | 16.36 | 4" | 11" | white | flapper | removable ½ " x ½ " | 11411 | 6 | 111411 | Display Tray | 722048114111 | • | 15.75 | 5.75 | 5.75 | 11 |
| PWM622 | 4.52 | 16.36 | 4" | 11" | brown | flapper | removable ½ " x ½ " | 11384 | 8 | 111384 | Bulk | 722048113848 | 15.75 | 5.75 | 5.75 | 11 | |
| PWM622 | 4.52 | 16.36 | 4" | 11" | brown | flapper | removable ½ " x ½ " | 11384 | 192 | 711384 | Skid | 722048113848 | 15.75 | 5.75 | 5.75 | 11 | |

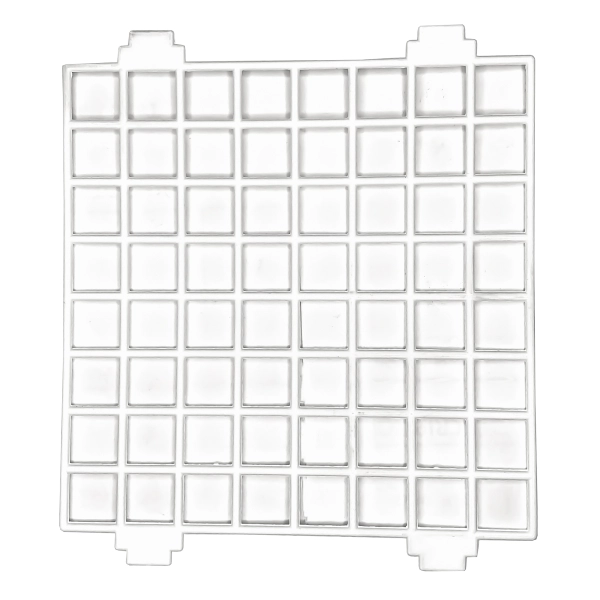

| replacement grid | n/a | n/a | white | 12700 | 100 | 112700 | Bulk | 722048127005 | 4.5 | 5.75 | 5.75 | n/a | |||||

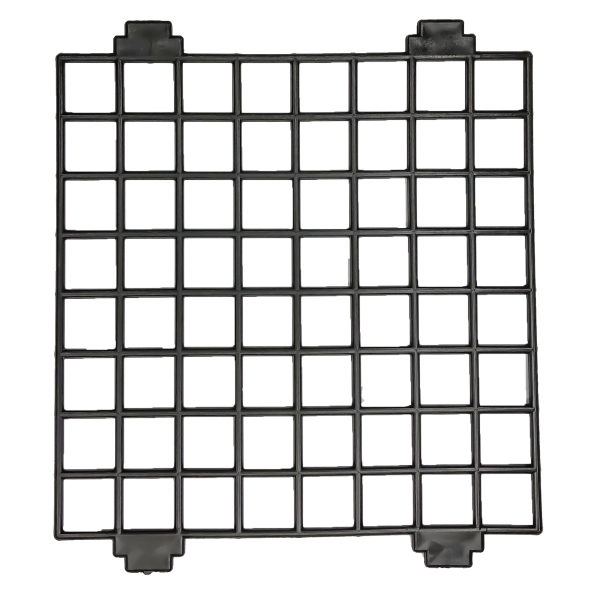

| replacement grid | n/a | n/a | brown | 12702 | 100 | 112702 | Bulk | 722048127029 | 4.5 | 5.75 | 5.75 | n/a | |||||
| replacement flapper | n/a | n/a | white | 12701 | 100 | 112701 | Bulk | 722048127012 | 4.125 | 4.125 | .458 | n/a | |||||
| replacement flapper | n/a | n/a | brown | 12703 | 100 | 112703 | Bulk | 722048127036 | 4.125 | 4.125 | .458 | n/a | |||||
