SAF-T-DUCT® All Metal Dryer Vent Kits – UL®
Builder’s Best labeled the first complete line of ALL METAL UL® 2158A dryer venting which complies with all clothes dryer manufacturer recommendations. SAF-T-DUCT® Dryer Venting is preferred for quicker, more secure installations using heavy duty aluminum, Snap-Lock™ fittings, and unique elbows.
These kits feature the Close Elbow® which makes 90˚ turns in 4" and protects those critical turns in tight venting situations.
Elbows are fastened to the duct with clamps so that they can be easily disassembled to meet a variety of installation challenges.
There are four distinct UL® all metal kits:
SINGLE ELBOW KIT UL®
• One piece 8′ UL® flexible pipe
• One Close Elbow®
• One crimped (male) fitting
• Two metal clamps

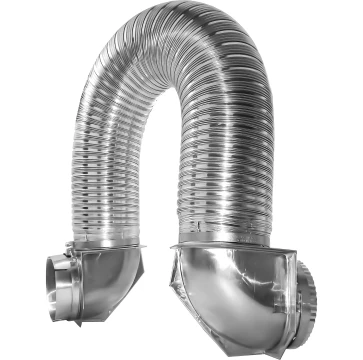

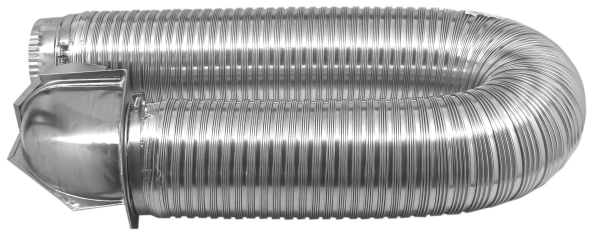

CLOSE LOOP™ KIT UL®
• One piece 6′ UL® flexible pipe
• Two Close Elbows®
• Two metal clamps

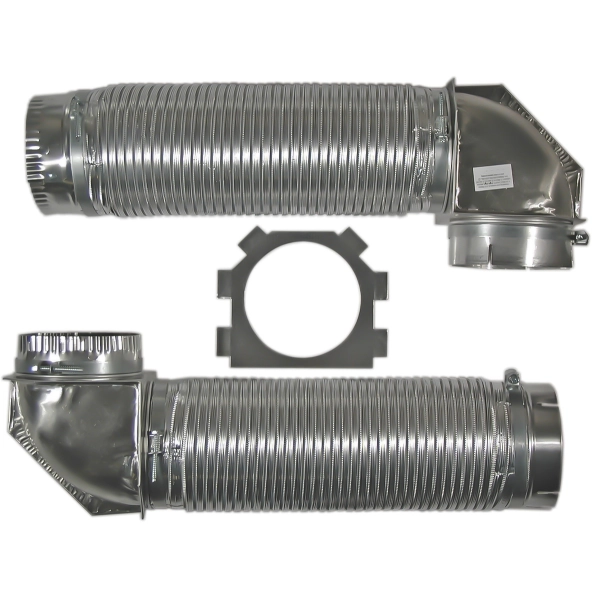

OVER-THE-TOP® KIT UL®
• Two 4′ UL® flexible pipe sections
• Two Close Elbows® (attached to pipe)
• Two metal clamps for wall and dryer connections
• One wall plate for flush clearance
INSTALLER'S KIT® UL®
• One 4′ UL® flexible pipe attached to a Close Elbow®
• One 4′ UL® flexible pipe attached to a Wall Offset Elbow®
• One extension collar (used for recessed wall pipes)
• Two clamps for wall and dryer connection
Model | Label | Diameter | Length | Elbows | Clamps | Listing | Each # | Qty | Case# | Package | UPC |
---|---|---|---|---|---|---|---|---|---|---|---|
Close Loop™ Kit UL® | • | 4" | 6' | 2 Close Elbows® | 2 steel screws | UL® 2158A | 11693 | 4 | 11693 | Ind. Box | 72204816931 |
Close Loop™ Kit UL® | • | 4" | 6' | 2 Close Elbows® | 2 steel screws | UL® 2158A | 11926 | 4 | 111926 | Display Box | 722048119260 |
